THE BLASTGATE COMPANY

UHMW Sealed Pneumatic Blast Gates

UHMW (Ultra High Molecular Weight) seals allow very low leakage in negative pressure (suction) systems. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom configurations are available.

UHMW Sealed Pneumatic Blast Gates

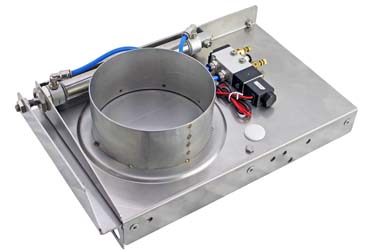

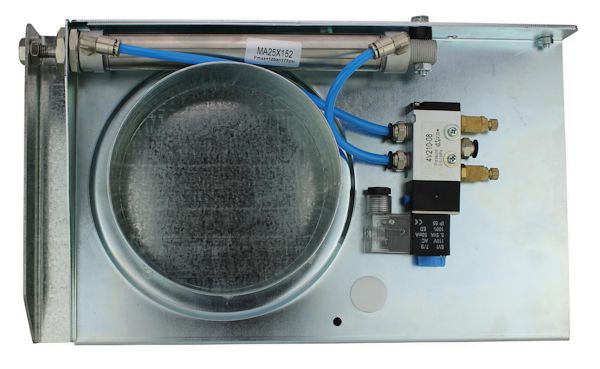

SINGLE CYLINDER
UHMW SEALED BLAST GATES

( Click on image for larger view )

  • Used for particulate dust and fumes/vapors
  • Self cleaning design
  • UHMW (Ultra High Molecular Weight) seals for very low leakage in negative pressure (suctions) systems
  • Available in zinc plated or stainless steel
  • Collars are standard O.D. plain ends. Sizes 2” to 12” rolled or flanged ends available at additional cost. Sizes 14”-24” have undersized collars for slip-fit connection.
  • Compressed air required: 80 to 90 PSI
  • Reed switches for sensing open/close position available
  • Sizes 2” - 7” Single Cylinder
  • Sizes 8” and up, Double Cylinder
  • Electrical coil included. Please specify voltage: 110VAC, 220VAC, 24VDC, 24VAC
  • Larger diameters available. Call for pricing

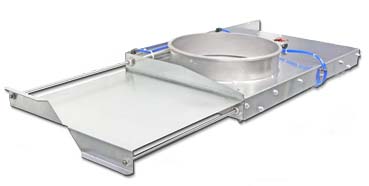

DOUBLE CYLINDER
UHMW SEALED BLAST GATES

Our .pdf Spec Sheet contains full dimensions! UHMW Auto .pdf Spec Sheet
UHMW SEALED BLAST GATES

( Click on image for larger view )

Manual UHMW Sealed Blast Gates TO ORDER CALL 877-904-4022

Galvanized with UHMW Seals

UHMW SEALED GALVANIZED
2 - 7" SINGLE CYLINDER
SizePart No.Price
2"BGASPN02 $815.00
3"BGASPN03 $824.00
4"BGASPN04 $824.00
5"BGASPN05 $865.20
6"BGASPN06 $865.20
7"BGASPN07 $885.00
8 - 24" DOUBLE CYLINDER
SizePart No.Price
8"BGASPN08 $885.00
9"BGASPN09 $927.00
10"BGASPN10 $952.80
12"BGASPN12 $978.50
14"BGASPN14 $1091.00
16"BGASPN16 $1236.00
18"BGASPN18 $1328.00
20"BGASPN20 $1442.00
22"BGASPN22 $1493.00
24"BGASPN24 $1546.00
Larger diameters available.

TO ORDER CALL 877-904-4022

Stainless Steel with UHMW Seals

UHMW SEALED STAINLESS STEEL
3 - 7" SINGLE CYLINDER
SizePart No.Price
2"BGASPN02SS $1756.00
3"BGASPN03SS $1756.00
4"BGASPN04SS $1756.00
5"BGASPN05SS $1765.00
6"BGASPN06SS $1744.00
7"BGASPN07SS $1783.00
8 - 24" DOUBLE CYLINDER
SizePart No.Price
8"BGASPN08SS $1949.00
9"BGASPN09SS $2449.00
10"BGASPN10SS $2494.00
12"BGASPN12SS $2640.00
14"BGASPN14SS $2797.00
16"BGASPN16SS $2894.00
18"BGASPN18SS $3246.00
20"BGASPN20SS $3496.00
22"BGASPN22SS $3784.00
24"BGASPN24SS $3986.00
Larger diameters available.
