THE BLASTGATE COMPANY

TRUE WYES, TEES, & SQUARE TO ROUND

Galvanized steel True Wyes and Tees provide the basic branch components for combining airflow. Square to Round Transitions adapt our spiral pipe systems to square duct and machines. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom configurations are available.

TRUE WYES

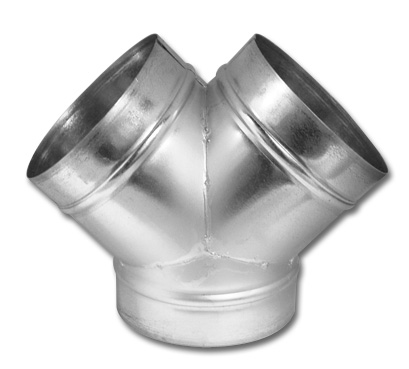

True Wye

( Click on image for larger view )

  • 45 degree 'Pants Leg' True Wye design
  • Galvanized steel fully welded construction
  • Male ends fits INSIDE spiral pipe.
  • Larger and custom sizes available

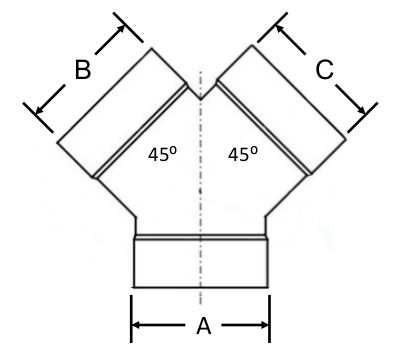

Spiral Pipe True Wye
Wyes and Tees .pdf Spec Sheet

TRUE WYES
ABCPart No.Price
3"3"3"TWYE0303 $107.32
4"4"4"TWYE0404 $107.32
5"5"5"TWYE0505 $111.99
6"6"6"TWYE0606 $116.79
7"7"7"TWYE0707 $122.04
8"8"8"TWYE0808 $127.37
9"9"9"TWYE0909 $134.78
10"10"10"TWYE1010 $140.09
12"12"12"TWYE1212 $154.42
14"14"14"TWYE1414 $169.37
16"16"16"TWYE1616 $180.55
18"18"18"TWYE1818 $189.98
Larger diameters available.

TO ORDER CALL 877-904-4022

90° TEES

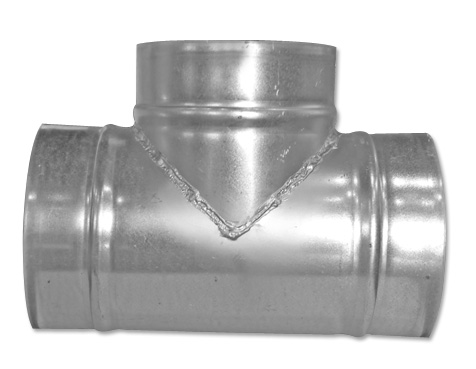

Shoe Tap

( Click on image for larger view )

  • 90 degree Lateral Tee
  • Not recommended for material collection.
  • Galvanized steel fully welded construction
  • Male ends fits INSIDE spiral pipe.
  • Larger and custom sizes available

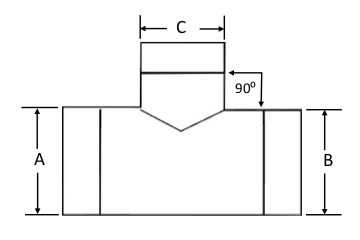

Spiral Pipe Tee Wyes and Tees .pdf Spec Sheet

TEES
ABCPart No.Price
3"3"3"BTL9030303 $ 38.56
4"4"4"BTL9040404 $ 38.56
5"5"5"BTL9050505 $ 39.87
6"6"6"BTL9060606 $ 40.50
7"7"7"BTL9070707 $ 41.87
8"8"8"BTL9080808 $ 44.59
10"10"10"BTL9101010 $ 52.58
12"12"12"BTL9121212 $ 60.87
14"14"14"BTL9141414 $ 69.74
16"16"16"BTL9161616 $110.00
18"18"18"BTL9181818 $114.00
20"20"20"BTL9202020 $125.24
Larger sizes available.

TO ORDER CALL 877-904-4022

SQUARE TO ROUND REDUCERS

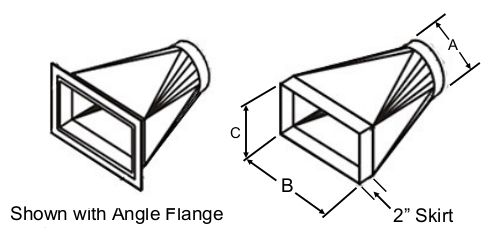

Square to Round Transition

( Click on image for larger view )

  • Priced by round end Diameter
  • Specify A, B & C dimensions
  • Specify O.D or I.D. of square end
  • Square (rectangular) ends should approximate the size of round end
  • Standard with 2” skirt raw edge
  • Angle flange adapter available at additional cost
  • Larger and custom sizes available
SQUARE TO ROUND
ABCPart No.Price
Made to your specification.
Please call for pricing.

Square To Round Wyes and Tees .pdf Spec Sheet

TO ORDER CALL 877-904-4022
