THE BLASTGATE COMPANY
To Our Valued Customers:
Due to significant fluctuations in metal prices, there will be a 10% Surcharge on All Metal Products (excluding Non-Metal Flex Hose & Manual Cast Aluminium Blast Gates)
NOTE: .pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.

FLEX HOSE & CLAMPS

Flex Hose
Clamps
Swivels

The Blastgate Company stocks one of the largest inventories for dust collection, material handling, chemical fumes and high temperature venting for home, commercial and industrial applications.

Our dust collection hose, also called dust hose, is designed for removal of sawdust, metal, powders, plastics and high abrasion applications like shot blasting and grinding. Alternatively, our vent hose is used for chemical fume systems, high temperature ovens, and vehicles that require exhaust hose.

Our standard lengths of Flex Hose range from 10 ft to 50 ft, depending on the type of hose. However, if your requirements call for less than standard lengths, please check our Drop Box of random length cut pieces at discounted prices.

Our stock hose is shipped the same day (when ordered before noon, EST) or the following day. If you would like help selecting the best Flex Hose for your application, please contact our experienced customer service team Toll Free at 877-904-4022 or e-mail sales@blastgateco.com.

HOSE Material Wall
in.
Temp.
deg F
Vinyl .015 -40°↔200°
Polyurethane .015 -65°↔225°
Polyurethane .015 -65°↔225°
Vinyl .030→.040 20°↔160°
Thermoplastic .026→.040 -60°↔275°
Polyurethane .033→.040 -40°↔200°
Polyurethane .031 -25°↔225°
Vinyl .025→.028 20°↔160°
Polyurethane .020 -65°↔225°
Polyurethane .030 -65°↔225°
Polyurethane .045 -65°↔225°
Thermoplastic .030 -40°↔275°
Neoprene N/A -40°↔250°
Vinyl .020 20°↔160°

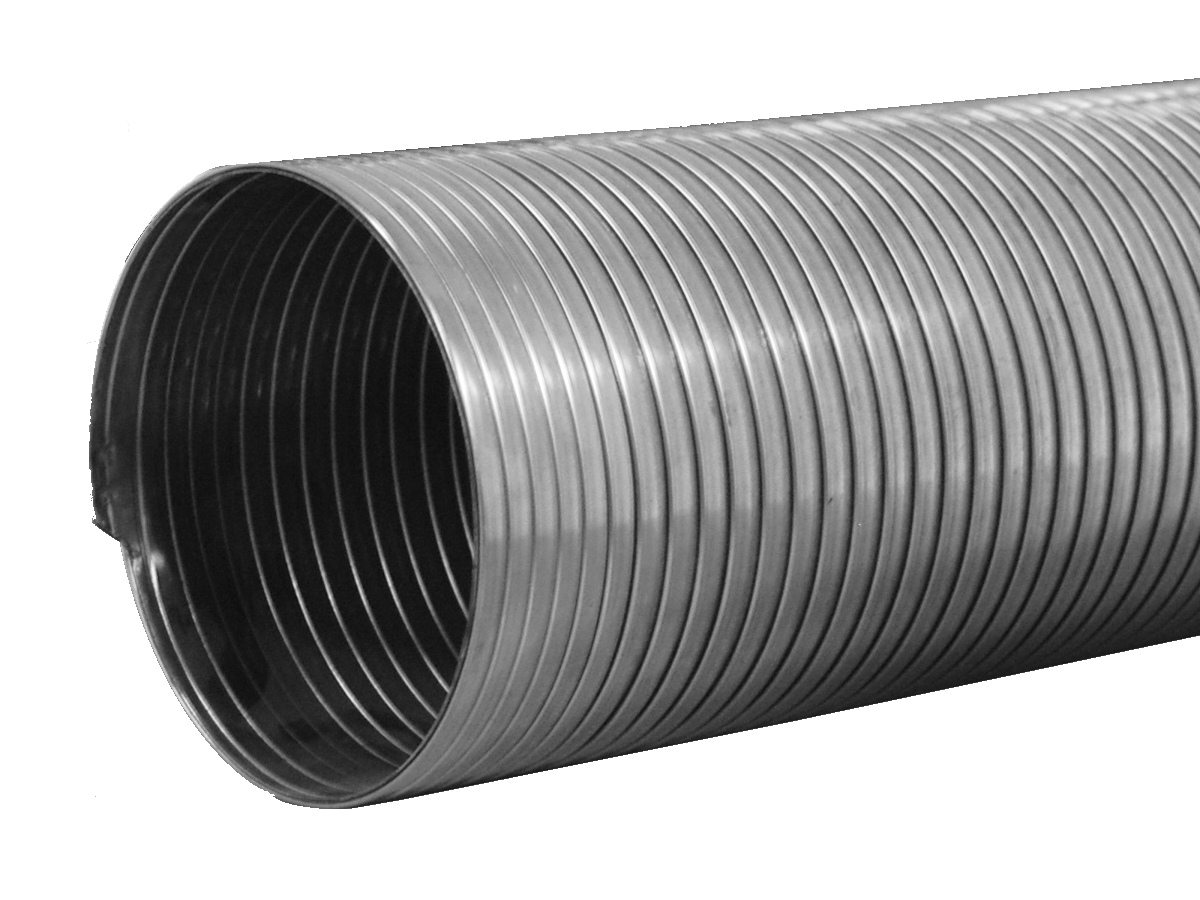

Steel .016→.020 -10°↔450°
Fiberglass N/A -65°↔550°
Stainless .005 -400°↔800°

Home and Hobby Shop Dust Collection Hose

PVC-FLEX

PVC=FLEX
Features
  • PVC Flex Hose
  • Very flexible
  • Wire helix for strength and durability
  • Clear wall to identify blockage
  • Sold in 10 foot sections only
Applications
  • Home/Hobby wood shop
  • Light commerical wood, dust & powders
Discount Pricing
PVC-FLEX 10 Foot length
Dia.Part No.Price
2.5"HPVCFLEX02.518.15
3"HPVCFLEX0321.89
4"HPVCFLEX0423.65
5"HPVCFLEX0534.95
6"HPVCFLEX0650.49
Sold in 10' Sections Only!

POLY-FLEX

POLY=FLEX
Features
  • Polyurethane Flex Hose
  • Very durable, puncture and abrasion resistant
  • Wears much longer than other hose
  • Clear with wire helix
  • Sold in 10 foot sections only
Applications
  • Home/Hobby wood shop
  • Light commerical wood, dust & powders
Discount Pricing
POLY-FLEX 10 Foot length
Dia.Part No.Price
2.5"HPOLYFLEX02.535.75
3"HPOLYFLEX0342.35
4"HPOLYFLEX0448.62
5"HPOLYFLEX0559.95
6"HPOLYFLEX0669.08
Sold in 10' Sections Only!

STATIC-FLEX

POLY=FLEX
Features
  • High quality polyurethane
  • Antistatic properties
  • Very durable
  • Clear with wire helix
  • Sold in 10', 25', and 50' Sections
Applications
  • Home/Hobby wood shop
  • Light commerical wood & dust
  • Powders, plastic pellets
Discount Pricing
STATIC-FLEX per foot
Dia.Part No.Price
2.5"HSTATICFLEX02.54.51
3"HSTATICFLEX034.69
4"HSTATICFLEX045.41
5"HSTATICFLEX055.73
6"HSTATICFLEX066.95
Sold in 10', 25', and 50' Sections Only

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

LAWN, LEAF, and DUST Collection Hose

FLEX-TUBE PV

FLEX-TUBE PV
Features
  • Medium weight PVC hose designed for lawn, leaf and dust collection
  • Ultra smooth interior wall assures efficient air and material flow
  • Very flexible and crush resistant
  • Outer PVC helix acts as a wearstrip for longer life
  • Color-clear with black helix
  • Temperature Range: 20°F to 160°F
  • Wall thickness: 3"=.030, 4"=.032, 5" to 8"=.035, 10"=.040 in.
Applications
  • Lawn & Leaf collection
  • Dust collection
  • Material handling
Standard Lengths
  • Sold in 5 foot increments (5', 10', 15', etc.)
Specifications
Recommendations
Flextube PV - Lawn, Leaf, Dust Collection Bridge clamps provide a secure 360° seal without damaging the hose helix.
Discount Pricing
FLEXTUBE PV per Foot
Dia.Part No.Price
3"HFT03PV5.52
4"HFT04PV6.92
5"HFT05PV9.00
6"HFT06PV10.93
7"HFT07PV13.13
8"HFT08PV16.24
10"HFT10PV20.59
12"HFT12PV25.41
Sold in 5 foot increments (5', 10', 15', etc.)

FLEX-TUBE TR

FLEX-TUBE TR
Features
  • Medium weight thermoplastic hose designed for lawn, leaf, and dust collection
  • Ultra smooth interior wall assures efficient air flow.
  • Very flexible and crush resistant.
  • Outer helix acts as a wearstrip
  • Color - Black
  • Temperature - -60° - 275° F
  • Wall Thickness - .026 (3" to 5"), .035 (6" to 8"), .040 (10")
Applications
  • Lawn & Leaf collection
  • Dust collection
  • Material handling
Standard Lengths
  • Sold in 5 foot increments (5', 10', 15', etc.)

Specifications
Recommendations
Flextube PV - Lawn, Leaf, Dust Collection Bridge clamps provide a secure 360° seal without damaging the hose helix.
Discount Pricing
FLEXTUBE TR per Foot
Dia.Part No.Price
3"HFT03TR8.52
4"HFT04TR10.08
5"HFT05TR11.61
6"HFT06TR13.13
7"HFT07TR15.55
8"HFT08TR20.04
10"HFT10TR25.91
Sold in 5 foot increments (5', 10', 15', etc.)

FLEX-TUBE PU

FLEX-TUBE PU
Features
  • Medium weight polyurethane hose for heavy duty lawn, leaft, dusts
  • Great abrasion resistance. Longer life over other hoses
  • Puncture and tear resistance - ultra smooth interior wall
  • Good low temperature flexibility
  • Crush resistant Outer ABS helix acts as a weatherstrip
  • FUEXTUBE-PU costs more but lasts much longer than standard hoses
  • Color - clear with yellow helix
  • Temperature Range: -40°F to 200°F
  • Wall thickness: 3"-5"=.033", 6"=8"=.035", 9"=10" -.040"
Applications
  • Lawn & leaf collection (top of the line)
  • Dust collection and material handling
  • Preferred by professional landscapers.
Standard Lengths
  • Sold in 5 foot increments (5', 10', 15', etc.)
Specifications

Recommendations
Flextube PV - Lawn, Leaf, Dust Collection Bridge clamps provide a secure 360° seal without damaging the hose helix.
Discount Pricing
FLEX-TUBE PU per foot
Dia.Part No.Price
3"HFT03PU10.02
4"HFT04PU12.86
5"HFT05PU17.62
6"HFT06PU18.65
7"HFT07PU24.18
8"HFT08PU26.62
9"HFT09PU28.82
10"HFT10PU31.44
12"HFT12PU39.28
Sold in 5 foot increments (5', 10', 15', etc.)

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

COMMERCIAL / INDUSTRIAL DUST & FUME COLLECTION HOSE

ATEX FIRE RETARDANT

ATEX FLEX HOSE
Features
  • ATEX certified for combustible dusts (wood dusts, powders, plastics)
  • Medium duty-high abrasion resistant polyurethane
  • Surface resistance level OHLMS/Square 10^8 - 10^16
  • Wall Thickness = .031 in.
  • Metric mm sizes available and in stock
Applications
  • Wood dust
  • Woodworking
  • Powders
  • Plastic dusts
Standard Lengths
  • Sold in 5 foot increments up to 50 feet.

Specifications
Recommendations
Swivel Use of a swivel ball joint on CNC machines greatly extends the life of the hose.
Discount Pricing
ATEX 30 per Foot
Dia.Part No.Price
2"HATEX30027.70
2.5"HATEX3002.58.98
3"HATEX30039.01
4"HATEX300411.36
5"HATEX300513.60
6"HATEX300616.79
8"HATEX300817.16
10"HATEX301026.87
12"HATEX301226.87
14"HATEX301433.74
16"HATEX301642.26
18"HATEX301851.73
Available in Metric mm diameters.CALL

TO ORDER CALL 877-904-4022

R-4 ECONO-PLUS

R-4 ECONO-PLUS
Features
  • Medium weight PVC hose with a spring steel helix
  • Ideal for dust collection
  • Clear color, good visibility shows blockages
  • Temperature Range 20°F to 160°F
Applications
  • Wood dust, chips
  • Positive air systems
  • Fume systems
  • Food materials, FDA approved
Standard Lengths
  • Sold in 10', 25', 50' lengths.

Specifications
Discount Pricing
R-4 ECONO-PLUS per Foot
Dia.Part No.Price
2"HR4023.95
2.5"HR402.55.44
3"HR4036.06
4"HR4046.93
5"HR4057.77
6"HR4068.12
7"HR40710.11
8"HR40811.33
10"HR41014.35
12"HR41217.41
Sold in 10', 25', 50' lengths.

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

FLX-20 TOUGH STUFF

FLX-20 TOUGH STUFF
Features
  • Light weight polyurethane hose with spring steel wire helix
  • Great abrasion resistance
  • Excellent flexibility
  • Superior chemical resistance
  • Color - Black, FDA clear
  • Temperature Range -65°F to 225°F
  • Wall Thickness = .020 in.
Applications
  • Wood dusts
  • Vertical panel saws
  • Oil mist
  • Coolant recovery
Standard Lengths
  • Sold in 10', 25', 50' lengths
Specifications
Recommendations

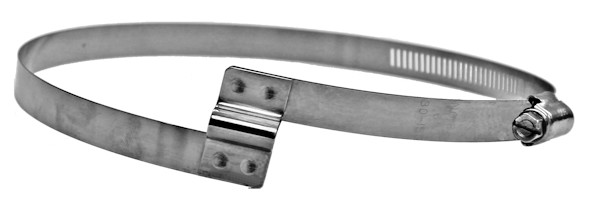

Bridge clamps provide a secure 360° seal
without damaging the hose helix.
Discount Pricing
FLX-20 TOUGH STUFF per foot
Dia.Part No.Price
2"HFLX20024.76
3"HFLX20037.21
4"HFLX20049.19
5"HFLX200511.04
6"HFLX200612.86
7"HFLX200714.28
8"HFLX200815.68
9"HFLX200919.87
10"HFLX201021.29
12"HFLX201225.51
Larger diameters available.CALL

FLX-30 TUFF STUFF

FLX-30 TOUGH STUFF
Features
  • Heavy duty polyurethane hose with spring steel wire helix
  • Great abrasion resistance with high tear strength
  • Superior chemical resistance
  • Color - Black, FDA clear
  • Temperature Range -65°F to 225°F
  • Wall Thickness = .030 in.
  • Available in metric diameters (Color - Clear)
Applications
  • CNC routers in wood working, plastics
  • Shapers, moulders
  • Leaf and lawn collection
Standard Lengths
  • Sold in 10', 25', 50' lengths
Specifications
Recommendations
Bridge clamps provide a secure 360° seal
without damaging the hose helix.
Discount Pricing
FLX-30 TOUGH STUFF per foot
Dia.Part No.Price
2"HFLX300210.26
3"HFLX300312.01
4"HFLX300415.16
5"HFLX300517.56
6"HFLX300618.13
7"HFLX300722.38
8"HFLX300823.16
9"HFLX300929.63
10"HFLX301032.36
12"HFLX301235.82
Larger diameters available.CALL

FLX-45 TOUGH STUFF

FLX-45 TOUGH STUFF
Features
  • Very heavy duty polyurethane hose with spring steel wire helix
  • Superior abrasion resistance
  • Ultimate puncture resistance
  • Ideal for severe applications
  • Colors - Black, FDA clear
  • Temperature Range -65°F to 225°F
  • Wall Thickness = .045 in.
Applications
  • Leaf collection
  • Street sweeping
  • Wood chips, band mills
  • Grain handling
  • Commercial/Municipal vacuuming
Standard Lengths
  • Sold in 10', 25', 50' lengths.
Specifications
Recommendations
Bridge clamps provide a secure 360° seal
without damaging the hose helix.
Discount Pricing
FLX-45 TOUGH STUFF per foot
Dia.Part No.Price
2"HFLX450213.78
3"HFLX450316.12
4"HFLX450420.33
5"HFLX450523.57
6"HFLX450624.32
7"HFLX450730.05
8"HFLX450831.12
10"HFLX451045.42
12"HFLX451248.87
Larger diameters available.CALL

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

T-7 MULTI-PURPOSE

T-7 MULTI-PURPOSE
Features
  • Thermoplastic rubber hose with spring steel wire helix
  • Good abrasion resistance
  • Excellent chemical resistance
  • Moisture and UV resistant
  • Smooth interior wall for greater efficiency
  • Color - Black
  • Temperature Range = -40°F to 275°F
  • Wall Thickness - .030 in.
Applications
  • Wood dusts
  • Fumes, vapors
  • Powders
  • Plastic dusts
Standard Lengths
  • Sold in 10', 25', 50' lengths.
Specifications
Recommendations
Bridge clamps provide a secure 360° seal
without damaging the hose helix.
Discount Pricing
T-7 MULTI-PURPOSE per foot
Dia.Part No.Price
2"HT7023.95
2.25"HT702.254.85
2.5"HT702.55.28
3"HT7035.88
3.5"HT703.57.20
4"HT7047.62
4.5"HT704.57.92
5"HT7058.08
5.5"HT705.58.83
6"HT7068.91
7"HT70710.18
8"HT70811.48
9"HT70914.94
10"HT71015.92
12"HT71219.05
Larger diameters available.CALL

CWGP INDUSTRIAL

CWGP INDUSTRIAL
Features
  • Double-ply neoprene coated polyester fabric with spring steel wire helix
  • The industry favorite for many years
  • Multipurpose hose for many demanding applications
  • Good crush resistance & tensile strength
  • Excellent abrasion & chemical resistance
  • Color - Black
  • Temperature Range -40°F to 250°F
Applications
  • Wood working
  • Grinding
  • Surface grinders
  • Smoke fume removal
  • Dust collectors
  • Blow-off applications
Standard Lengths
  • Sold in 12.5', 25' lengths
Specifications
Recommendations
Bridge clamps provide a secure 360° seal
without damaging the hose helix.
Discount Pricing
CWGP INDUSTRIAL per foot
Dia.Part No.Price
2"HCWGP029.46
3"HCWGP0310.80
4"HCWGP0412.37
5"HCWGP0514.03
6"HCWGP0615.03
7"HCWGP0717.00
8"HCWGP0819.25
10"HCWGP1024.03
12"HCWGP1229.13
Larger diameters available.CALL

TO ORDER CALL 877-904-4022

R-2 FUME

R-2 FUME
Features
  • Light weight PVC hose with spring steel wire helix
  • Economical choice for fumes and general ventilation systems
  • Color - UL 94V-0 Blue in stock now
  • FDA Clear available by special order
  • Temperature Range 20°F to 160°F
  • Wall Thickness = .020 in.
Applications
  • Lab ventilation
  • Clean rooms
  • Textile lint
Standard Lengths
  • Sold in 12.5', 25', 50' lengths
Specifications
Recommendations
Bridge clamps provide a secure 360° seal
without damaging the hose helix.
Discount Pricing
R-2 FUME per foot
Dia.Part No.Price
3"HR2035.88
4"HR2046.92
5"HR2057.47
6"HR2067.93
7"HR2079.71
8"HR20811.09
10"HR21015.65
12"HR21217.08
Larger sizes available.CALL

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

HIGH TEMPERATURE Hose

MFH METAL FLEX

METAL FLEX
Features
  • Interlocking galvanized steel
  • Ideal for abrasive materials in grinding dusts, heavy wood chips
  • Higher temperature engine exhaust
  • Dry bulk material transfer
  • Temperature Range -10°F to 450°F
  • Wall Thickness = .016 to .020 in.
Applications
  • Surface grinders
  • Welding exhaust
  • Heavy wood chips
  • Pallets, moulding machines
Standard Lengths
Standard Length: 5 feet
Available length(s): 10', 25'

Discount Pricing
MFH METAL FLEX per Foot
Dia.Part No.Price
2"HMF026.93
3"HMF038.73
4"HMF0412.03
5"HMF0513.40
6"HMF0616.33
7"HMF0721.23
8"HMF0832.46
9"HMF0938.79
10"HMF1043.23
Special crating may be required.

GS HIGH TEMP

GS HIGH TEMP
Features
  • Double-ply silicone coated fiberglass fabric hose with wire helix
  • External filament fiberglass core
  • High temperature air handling
  • Resistant to many oils, solvents, ozone, water, fungus, alkalis
  • Not recommended for continuous flexing
  • Color - Iron oxide red
  • Temperature Range -65°F to 550°F
Applications
  • Plastic molding
  • Foundries
  • Paper mills
  • Oven venting
  • Hot fumes
Standard Lengths
  • Standard Lengths: 12'
Discount Pricing
GS HIGH TEMP per Foot
Dia.Part No.Price
3"HGS0320.15
4"HGS0423.87
5"HGS0528.44
6"HGS0632.80
7"HGS0737.66
8"HGS0842.87
10"HGS1051.68
12"HGS1264.27
Sold in 12' segments only.

BENDWAY-S

BENDWAY-S
Features
  • Single-ply corrugated stainless steel alloy hose with a 4-ply finished seam folded flat for tightness and strength
  • Light weight & hand bendable allowing for elbows & turns to be formed easily
  • Hose connectors available
  • Not recommended for continuous flexing
  • Color - Silver
  • Temperature Range -400°F to 800°F
  • Wall Thickness = .005 in.
Applications
  • Fumes, gases
  • Elevated temperatures
  • Shipping tubes included
Standard Lengths
  • Standard Lengths: 5' and 10' only
Discount Pricing
BENDWAY-S per foot
Dia.Part No.Price
2"HBENDS0213.06
3"HBENDS0314.88
4"HBENDS0417.06
5"HBENDS0520.44
6"HBENDS0621.68
8"HBENDS0827.41
Larger sizes available.CALL

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

HOSE CLAMPS

HOSE CLAMPS

SS Hose Clamps
Features
  • All stainless steel construction
  • Standard worm gear drive
  • 1/2 inch (12.7mm) wide strap
  • Available up to 20” diameter
  • See our Catalog for all clamps
    including Bridge Clamps
Applications
  • Usable with hoses having a low profile wire helix.
Recommendations
For hoses with a large helix, Bridge Clamps below work best. HOSE CLAMPS Bridge clamps provide a secure 360° seal without damaging the hose helix.
Discount Pricing
SS Hose Clamps each
Dia.Part No.Price
2"HC022.18
3"HC032.18
4"HC043.52
5"HC053.52
6"HC064.37
7"HC075.23
8"HC086.55
10"HC107.42
12"HC1210.69
14"HC1411.46
16"HC1612.95
18"HC1813.73
20"HC2014.75
Larger diameters available.

BRIDGE CLAMPS

Bridge Clamps

Click image for larger view

Features
  • Provides a secure 360° seal
  • Won't damage the hose helix
  • All stainless steel construction
  • Standard worm gear drive
  • 1/2 inch (12.7mm) wide strap
  • Available up to 24” diameter
Applications
  • Hoses having a high profile wire helix.
Recommendations
HOSE CLAMPS For hoses with a large helix,
Bridge Clamps work best.
Discount Pricing
Bridge Clamps each
Dia.Part No.Price
4"BC045.68
5"BC056.23
6"BC067.75
7"BC078.80
8"BC089.52
10"BC1011.20
12"BC1216.15
Larger diameters available.

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

BALL JOINT SWIVELS

BALL JOINT SWIVELS

POLY=FLEX
Features
  • Extends the life of Flex Hose
  • Recommended for use with all CNC Machines
  • Spun Steel body with Zinc Plating
  • 1" long connecting collars
Applications
  • CNC Machines
  • Machines with moving heads
  • Articulating Hose Arms
Discount Pricing
BALL JOINT SWIVELS
Dia.Part No.Price
3"BJ03124.78
4"BJ04136.85
5"BJ05144.44
6"BJ06148.81
7"BJ07161.69
8"BJ08206.31
9"BJ09251.74
10"BJ10252.54
12"BJ12321.31

TO ASK A QUESTION OR PLACE AN ORDER CALL TOLL FREE 877-904-4022

Return to TOP
Home Page

* pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.
