THE BLASTGATE COMPANY

Blast Gates Maximize your Vacuum Pressure

By using our blast gates to close off lines that are not in use, you can keep the vacuum suction strongest at the point where you need it.  This will result in the maximum possible dust or debris extraction at a particular location.

Selection The Blastgate Company offers a full line of standard and custom fabricated blast gates. We also make specialty blast gates such as self-cleaning gates, positive seal (vapor-proof) gates and automatic blast gates.
Materials Construction materials are mild steel, galvanized steel, 304 and 316 stainless steel and cast aluminum.
Delivery Most Blast Gate sizes from 2" to 30" are in stock and ship the same day.

View our NEW 2018 BLASTGATE Catalog with prices Download .pdf

MANUAL BLAST GATES

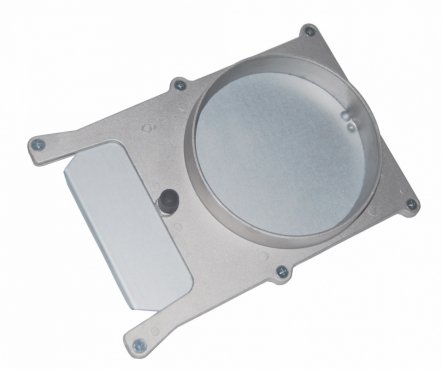

Cast Aluminum Full Blast Gates Cast Aluminum Full Blast Gate

Full blast gates (also called cut-offs) are used to open and close branch ducts in a system allowing air to be diverted only to machines that are operating, thus conserving air volume. Sliding galvanized blade features a locking screw for full volume control including balancing.

Prices & Sizes .pdf Spec Sheet

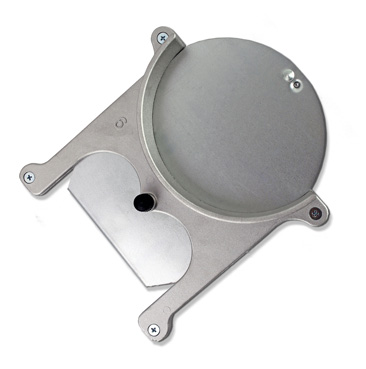

Cast Aluminum Half Blast Gates Cast Aluminum Half Blast Gate

Half blast gates are used when adding a gate to an existing branch duct that is prone to clogging or a very abrasive material as this gate adds no internal obstructions. Galvanized steel slide with locking screw.

Prices & Sizes .pdf Spec Sheet

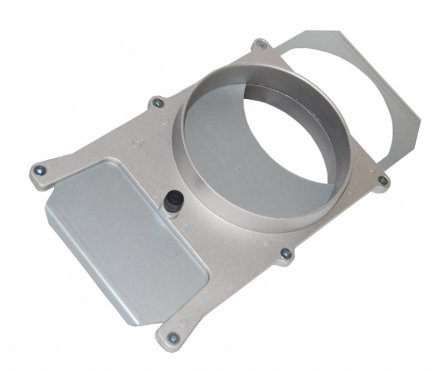

Cast Aluminum Self-Cleaning Blastgates Cast Aluminum Self-Cleaning Blast Gate

Self-cleaning gates are the same construction as our full blast gates, except the galvanized steel slide moves through the open end to push out debris from wood pulp and sticky materials.

Prices & Sizes .pdf Spec Sheet

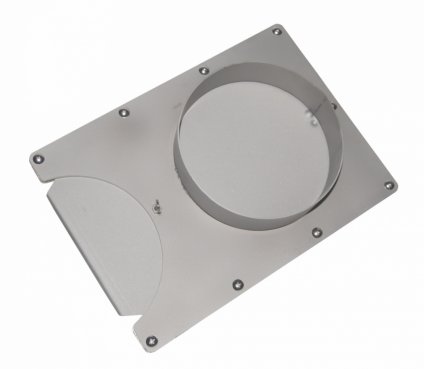

Stainless Steel Fabricated Blast Gates Stainless Steel Fabricated Blast Gates

Stainless steel fabricated gates are constructed from 12 ga. 304 stainless steel body and slide blade. Bolt together body allows dissassembly for cleaning. Welded collars are standard, angle ring flanges are available. 316 stainless steel is also available at additional cost (see .pdf Spec Sheet for pricing).

Prices & Sizes .pdf Spec Sheet

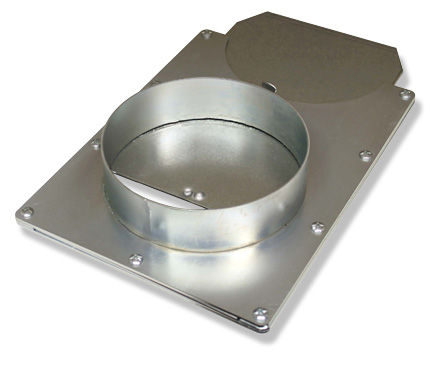

Galvanized Steel Blastgates Galvanized Steel Fabricated Blast Gates

Galvanized steel blast gates are constructed the same as our stainless steel gates. These gates are more economical than stainless steel when elevated temperature or corrosion resistance is not required.

Prices & Sizes .pdf Spec Sheet

AUTOMATIC BLAST GATES

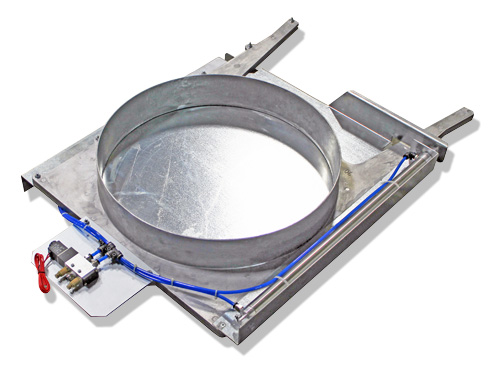

Pneumatic Cast Aluminum Full Blast Gates Pneumatic Cast Aluminum Full Blast Gates

Our air-operated gates are fully automatic using an air cylinder that has power in both directions. Instant open/close. 35 lb. load capacity at 80/90 psi., 1/4 in. NPT ports. No lubrication required air cylinder is standard.

Prices & Sizes .pdf Spec Sheet 2-7" .pdf Spec Sheet 8-24"
Pneumatic Fabricated Steel and Stainless Steel Blastgates Pneumatic All Galvanized or Stainless Steel Blast Gates

These fabricated gates use the same air cylinder and mounting as the cast aluminum, except the gate is all galvanized or stainless steel for high temperature food or corrosive application.

Prices & Sizes .pdf Spec Sheet 2-7" .pdf Spec Sheet 8-24"

POSITIVE SEAL "Vapor Proof" BLAST GATE

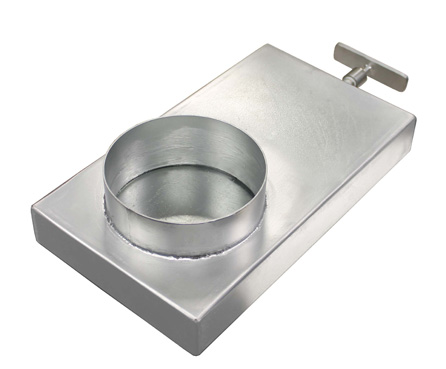

Positive Seal Vapor Proof Fabricated Blastgates Positive Seal "Vapor Proof" Fabricated Blast Gate

Positive seal, also called "vapor proof" gates, are used in applications that require no external air leakage. Internal leakage is minimal. Not recommended when material is in the air stream. Galvanized steel body is standard, stainless steel is optional at additional cost.

Prices & Sizes .pdf Spec Sheet
