THE BLASTGATE COMPANY

END CAPS & REDUCERS

Galvanized steel end caps seal off unused branches and allow for easy future expansion. Our spun steel reducers feature a smooth tapered wall to minimize turbulance and prevent clogging. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom configurations are available.

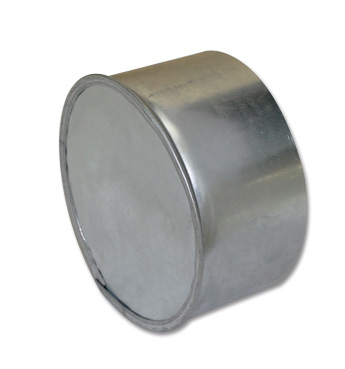

SPIRAL PIPE END CAPS

Spiral Pipe

( Click on image for larger view )

  • Galvanized steel collar and flat top.
  • Male end fits INSIDE spiral pipe.
  • Made to cap off open spiral pipe runs.
  • Allows for future expansion of collector systems.
  • Secure with sheet metal screws or pop rivets
    (fasteners not included).
  • Larger diameters available.

Spiral Pipe
End Caps .pdf Spec Sheet

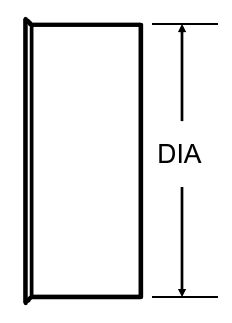

END CAPS
DIAPart No.Price
3"EC03L $ 5.23
4"EC04L $ 5.30
5"EC05L $ 5.42
6"EC06L $ 5.96
7"EC07L $ 6.05
8"EC08L $ 6.73
9"EC09L $ 7.86
10"EC10L $ 8.87
11"EC11L $ 10.01
12"EC12L $ 13.59
13"EC13L $ 11.88
14"EC14L $ 15.49
15"EC15L $ 13.95
16"EC16L $ 16.48
18"EC18L $ 17.79
20"EC20L $ 19.36
22"EC22L $ 21.56
24"EC24L $ 25.30
26"EC26L $ 29.70
28"EC28L $ 37.05
30"EC30L $ 44.43
32"EC32L $ 48.86
34"EC34L $ 53.29
36"EC36L $ 57.75
Larger diameters available.

TO ORDER CALL 877-904-4022

SPUN REDUCERS

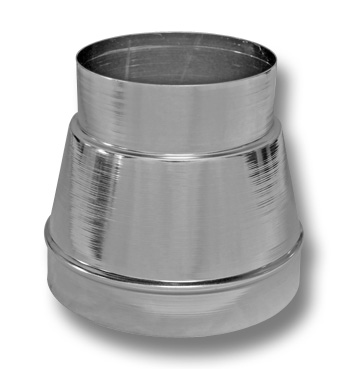

Spiral Pipe Reducer

( Click on image for larger view )

  • Galvanized steel spun wall construction.
  • Male ends fit INSIDE spiral pipe.
  • Secure with sheet metal screws or pop rivets
    (fasteners not included).
  • Our vinyl seal duct tape is recommended to seal air tight.

Spiral Pipe Reducer Spiral Pipe Reducer .pdf Spec Sheet

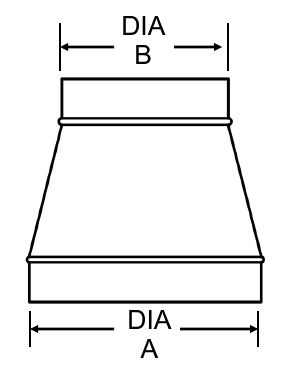

SPIRAL PIPE REDUCERS
ABPart No.Price
3"2"R0302H $ 15.75
3"2.5"R0302.5H $ 15.75
4"2"R0402H $ 15.40
4"2.5"R0402.5H $ 15.40
4"3"R0403H $ 15.40
5"3"R0503H $ 15.40
5"4"R0504H $ 15.40
6"3"R0603H $ 17.26
6"4"R0604H $ 17.26
6"5"R0605H $ 17.26
7"4"R0704H $ 18.95
7"5"R0705H $ 18.95
7"6"R0706H $ 18.95
8"4"R0804H $ 20.60
8"5"R0805H $ 20.60
8"6"R0806H $ 20.60
8"7"R0807H $ 20.60
9"7"R0907H $ 21.30
9"8"R0908H $ 21.30
10"6"R1006H $ 21.90
10"8"R1008H $ 21.90
10"9"R1009H $ 21.90
12"6"R1206H $ 24.96
12"8"R1208H $ 24.96
12"10"R1210H $ 24.96
14"10"R1410H $ 32.12
14"12"R1412H $ 32.12
16"10"R1610H $ 36.30
16"12"R1612H $ 36.30
16"14"R1614H $ 36.30
Larger sizes available.

TO ORDER CALL 877-904-4022
