THE BLASTGATE COMPANY

Cast Aluminum Pneumatic Blast Gates

Our air-operated gates are fully automatic using an air cylinder that has power in both directions. Instant open/close. 35 lb. load capacity at 80/90 psi. No lubrication required air cylinder is standard. Sizes from 2 to 7" use 1 pneumatic cylinder, 8" and up use 2 cylinders. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom configurations are available.

Cast Aluminum Pneumatic Blast Gates

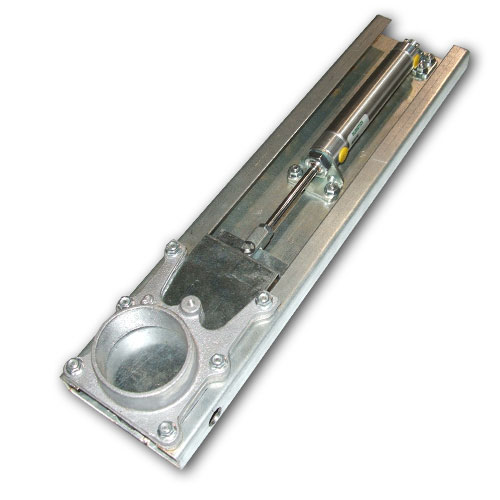

Single Cylinder
Cast Aluminum Pneumatic Blast Gate Compact Pneumatic Blast Gate
Double Cylinder 'Compact' Series

( Click on image for larger view )

  • Designed for dust and fumes.
  • Cast aluminum body with galvanized slide blade
  • Operated by 80 - 90 P.S.I. compressed air
  • 120 VAC, 220 VAC, 24 VAC, or 24 VDC valve coil included. Please specify voltage.
  • Undersized collars for slip-fit into spiral duct
  • Angle Flanges and Rolled edge collars available at additonal cost
  • Sizes 2” - 7” Single Cylinder
  • Sizes 8” and up, Double Cylinder
  • Larger diameters available. Call for pricing

Our .pdf Specs Sheet contains full dimensions!
Single Cylinder .pdf Spec Sheet Double Cylinder .pdf Spec Sheet

Single Pneumatic Cylinder

CAST ALUMINUM PNEUMATIC
2 - 7" SINGLE CYLINDER
SizePart No.Price
2"BGPN02 $382.20
3"BGPN03 $385.79
4"BGPN04 $387.75
5"BGPN05 $392.79
6"BGPN06 $396.53
7"BGPN07 $403.06
8" and up see below

Double Cylinder Compact Series

CAST ALUMINUM PNEUMATIC
8 - 24" DOUBLE CYLINDER
SizePart No.Price
8"BGPN08 $456.36
9"BGPN09 $501.20
10"BGPN10 $548.15
11"BGPN11 $363.60
12"BGPN12 $569.05
14"BGPN14 $301.22
16"BGPN16 $802.99
18"BGPN18 $918.61
20"BGPN20 $994.31
22"BGPN22 $1003.76
24"BGPN24 $1170.54
Larger diameters available.

TO ORDER CALL 877-904-4022
Also available...
MANUAL Aluminum Blast Gates
