THE BLASTGATE COMPANY
To Our Valued Customers:
Due to significant fluctuations in metal prices, there will be a 10% Surcharge on All Metal Products (excluding Non-Metal Flex Hose & Manual Cast Aluminium Blast Gates)
NOTE: .pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.

SPIRAL PIPE & CONNECTORS

Galvanized steel spiral pipe in UPS shippable 5 foot lengths. Ideal for Dust Collection, Fume Venting, and HVAC systems. Male and Female connectors adapt to most standard fittings. Custom adapters are available.

SPIRAL PIPE

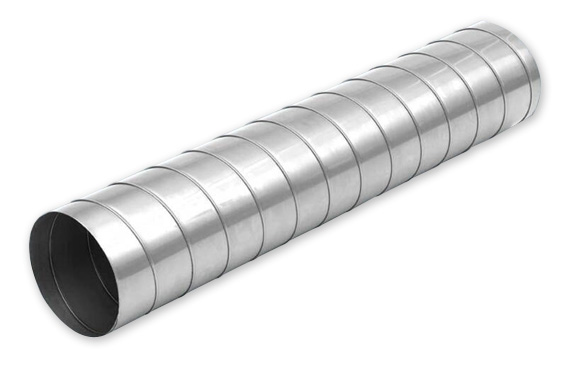

Spiral Pipe

( Click on image for larger view )

  • Galvanized steel with two plain female ends.
  • Sold in UPS shippable 5 foot sections.
  • For dust collection, fume venting, and HVAC systems.
  • 3” - 16” diameter = 26 ga. Standard
  • 8” - 24” diameter = 24 ga. Standard
  • Heavier gauges available
  • 3” to 24” standard diameters. Larger diameters available.

Spiral Pipe .pdf Spec Sheet

SPIRAL PIPE - 5 foot LENGTHS
SizePart No.Price
3"SP03-512.75
4"SP04-516.83
5"SP05-521.38
6"SP06-524.38
7"SP07-528.95
8"SP08-531.95
9"SP09-535.85
10"SP10-536.10
11"SP11-539.60
12"SP12-539.60
14"SP14-544.20
16"SP16-546.55
18"SP18-551.95
20"SP20-556.88
22"SP22-564.26
24"SP24-569.55
Larger sizes availableCall


TO ORDER CALL 877-904-4022

MALE PIPE CONNECTORS

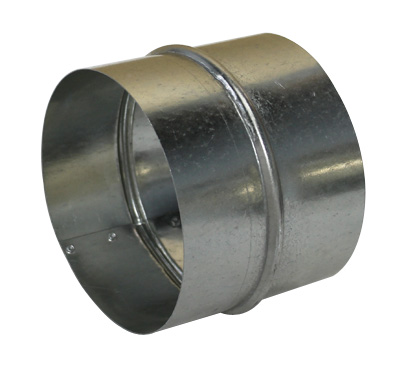

Male Spiral Pipe Connector

( Click on image for larger view )

  • Male connectors fit INSIDE spiral pipe.
  • For pipe to pipe or pipe to hose connections.
  • Secure with sheet metal screws or pop rivets
    (fasteners not included). See below
  • Our vinyl seal duct tape is recommended to seal air tight.

Spiral Pipe .pdf Spec Sheet

MALE PIPE CONNECTORS
O.D.Part No.Price
3"SPC036.29
4"SPC046.29
5"SPC056.61
6"SPC067.20
7"SPC077.52
8"SPC088.12
9"SPC098.36
10"SPC109.47
11"SPC119.71
12"SPC129.96
14"SPC1412.62
16"SPC1613.42
18"SPC1817.36
20"SPC2017.69
22"SPC2220.40
24"SPC2420.82
Larger sizes availableCall


TO ORDER CALL 877-904-4022

FEMALE PIPE CONNECTORS

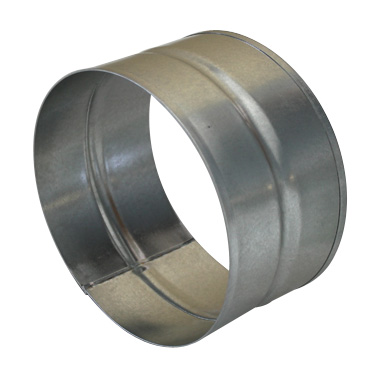

Female Spiral Pipe Connector

( Click on image for larger view )

  • Female connectors fit OUTSIDE spiral pipe.
  • For connecting fittings together.
  • Secure with sheet metal screws or pop rivets
    (fasteners not included). See below
  • Our vinyl seal duct tape is recommended for an air tight seal.

Spiral Pipe .pdf Spec Sheet

FEMALE PIPE CONNECTORS
I.D.Part No.Price
3"FC036.29
4"FC046.29
5"FC056.61
6"FC067.20
7"FC077.52
8"FC088.12
9"FC098.80
10"FC109.47
12"FC129.96
14"FC1412.62
16"FC1613.42
18"FC1817.36
20"FC2017.69
22"FC2220.40
24"FC2420.82
Larger sizes availableCall


TO ORDER CALL 877-904-4022

FASTENERS

Pop-Rivet Pop-Rivet TEK-Screws Vinyl Sealing Tape

( Click on images for a larger view )

Spiral Pipe and fittings should be secured with a minimum of three fasteners per connection. Our Vinyl Seal Duct Sealing Tape is recommended for a professional air tight seal.

Pop-Rivets

  • 1/8" Diameter Aluminum heads with steel mandrel.
  • Sold in 100 count packages.
  • RSS41D100 1/8 STEEL POP RIVET 1/16"-1/8" GRIP
  • RSS49D100 1/8 STEEL POP RIVET 3/16"-1/4" GRIP
POP-RIVETS
RangePart No.Price
1/16-1/8"RSS41D1004.10
3/16-1/4"RSS49D1004.10

Self Drilling Screws

  • #10 X 3/4" Self Drilling Screws
  • 5/16" Hex Drive Head with integral washer.
  • Sold in 100 count and 5 pound packages.
  • 5 lb. package contains approximately 840 screws.
SELF DRILLING SCREWS
Qty.Part No.Price
100SD1034-100 CT.4.14
5 lbsSD1034-5LB20.00

Vinyl Duct Sealing Tape

  • 1 1/4" Wide x 36 Yards (108 feet) long. Grey in color.
  • Very flexible, non-hardening, and maintains flexibility for years.
  • Specifically formulated for tight adhesion on metal to metal connections.
  • Can be removed easily if necessary.
VINYL SEALING TAPE
SizePart No.Price
108' rollVS1055.99

TO ORDER CALL 877-904-4022

* pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.
