THE BLASTGATE COMPANY

SPIRAL PIPE ELBOWS

Galvanized steel elbows for spiral pipe systems. 12 inch diameter and below are press formed, 14 inch and above feature welded segment construction. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes, 1.0 C.L.R. small radius versions, and custom elbows are available.

90° SPIRAL PIPE ELBOWS

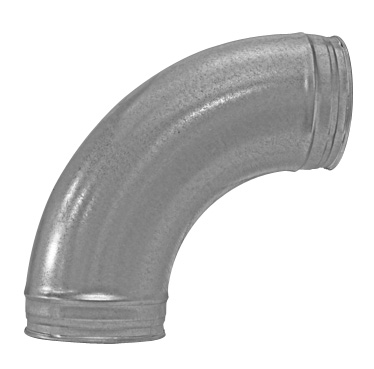

3" - 12" Press Formed Elbows
Spiral Pipe Elbows Spiral Pipe Elbows

( Click on images for larger view )

  • Galvanized 24 gauge steel construction
  • Two male ends fit INSIDE spiral pipe ends
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems

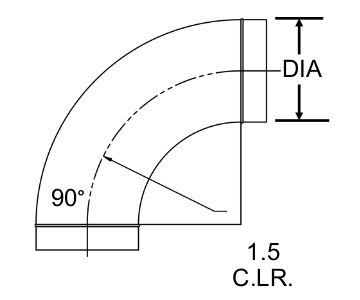

90° PRESSED ELBOWS
SizePart No.Price
3"EL903HLR18.60
4"EL904HLR19.96
5"EL905HLR22.67
6"EL906HLR25.64
7"EL907HLR37.31
8"EL908HLR38.64
9"EL909HLR55.06
10"EL910HLR56.16
12"EL912HLR68.28

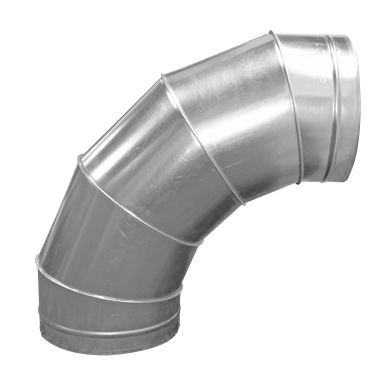

14" - 24" Segmented Elbows
Spiral Pipe Elbows Spiral Pipe Elbows

( Click on images for larger view )

  • Galvanized steel all welded construction
  • Two male ends fit INSIDE spiral pipe ends
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems

Spiral Pipe Elbows .pdf Spec Sheet

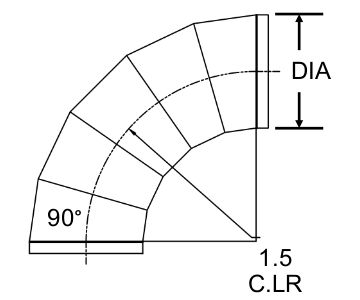

90° SEGMENTED ELBOWS
O.D.Part No.Price
14"EL914HLR107.52
16"EL916HLR124.92
18"EL918HLR142.01
20"EL920HLR186.74
22"EL922HLR195.43
24"EL924HLR218.59
Larger sizes available.


TO ORDER CALL 877-904-4022

45° SPIRAL PIPE ELBOWS

3" - 12" Press Formed Elbows
Spiral Pipe Elbows Spiral Pipe Elbows

( Click on images for larger view )

  • Galvanized 24 gauge steel construction
  • Two male ends fit INSIDE spiral pipe ends
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems

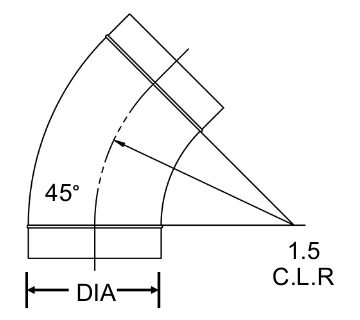

45° PRESSED ELBOWS
SizePart No.Price
3"EL403HLR14.88
4"EL404HLR15.96
5"EL405HLR18.13
6"EL406HLR20.52
7"EL407HLR29.84
8"EL408HLR30.91
9"EL409HLR44.04
10"EL410HLR44.93
12"EL412HLR54.62

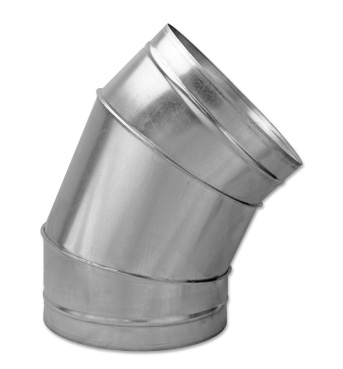

14" - 24" Segmented Elbows
Spiral Pipe Elbows Spiral Pipe Elbows

( Click on images for larger view )

  • Galvanized steel all welded construction
  • Two male ends fit INSIDE spiral pipe ends
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems

Spiral Pipe Elbows .pdf Spec Sheet

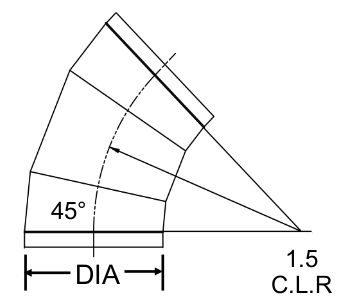

45° SEGMENTED ELBOWS
O.D.Part No.Price
14"EL414HLR85.92
16"EL416HLR99.94
18"EL418HLR113.60
20"EL420HLR149.40
22"EL422HLR156.35
24"EL424HLR174.88
Larger sizes available.


TO ORDER CALL 877-904-4022
