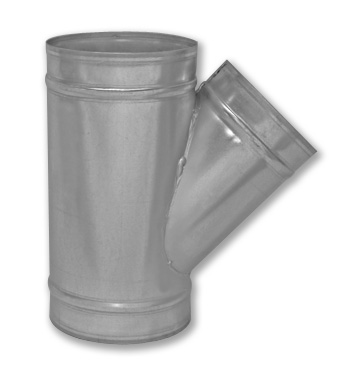

Galvanized steel Lateral Wyes are the preferred way to combine branch runs. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom configurations are available.
( Click on image for larger view )
Lateral Wyes .pdf Spec Sheet
TO ORDER CALL 877-904-4022

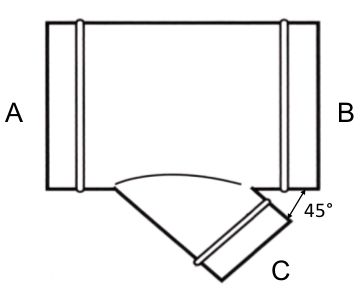

| LATERAL WYES | ||||
| A | B | C | Part No. | Price |
|---|---|---|---|---|
| 3" | 3" | 3" | BTL4030303 | 48.58 |
| 4" | 4" | 3" | BTL4040403 | 48.58 |
| 4" | 4" | 4" | BTL4040404 | 48.58 |
| 5" | 5" | 3" | BTL4050503 | 50.23 |
| 5" | 5" | 4" | BTL4050504 | 50.23 |
| 5" | 5" | 5" | BTL4050505 | 50.23 |
| 6" | 6" | 3" | BTL4060603 | 51.03 |
| 6" | 6" | 4" | BTL4060604 | 51.03 |
| 6" | 6" | 5" | BTL4060605 | 51.03 |
| 6" | 6" | 6" | BTL4060606 | 51.03 |
| 7" | 7" | 3" | BTL4070703 | 52.75 |
| 7" | 7" | 4" | BTL4070704 | 52.75 |
| 7" | 7" | 5" | BTL4070705 | 52.75 |
| 7" | 7" | 6" | BTL4070706 | 52.75 |
| 7" | 7" | 7" | BTL4070707 | 52.75 |
| 8" | 8" | 4" | BTL4080804 | 56.19 |
| 8" | 8" | 5" | BTL4080805 | 56.19 |
| 8" | 8" | 6" | BTL4080806 | 56.19 |
| 8" | 8" | 7" | BTL4080807 | 56.19 |
| 8" | 8" | 8" | BTL4080808 | 56.19 |
| 10" | 10" | 4" | BTL4101004 | 66.26 |
| 10" | 10" | 5" | BTL4101005 | 66.26 |
| 10" | 10" | 6" | BTL4101006 | 66.26 |
| 10" | 10" | 7" | BTL4101007 | 66.26 |
| 10" | 10" | 8" | BTL4101008 | 66.26 |
| 10" | 10" | 10" | BTL4101010 | 66.26 |
| 12" | 12" | 4" | BTL4121204 | 76.70 |
| 12" | 12" | 5" | BTL4121205 | 76.70 |
| 12" | 12" | 6" | BTL4121206 | 76.70 |
| 12" | 12" | 7" | BTL4121207 | 76.70 |
| 12" | 12" | 8" | BTL4121208 | 76.70 |
| 12" | 12" | 10" | BTL4121210 | 76.70 |
| 12" | 12" | 12" | BTL4121212 | 76.70 |
| 14" | 14" | 4" | BTL4141404 | 87.87 |
| 14" | 14" | 5" | BTL4141405 | 87.87 |
| 14" | 14" | 6" | BTL4141406 | 87.87 |
| 14" | 14" | 7" | BTL4141407 | 87.87 |
| 14" | 14" | 8" | BTL4141408 | 87.87 |
| 14" | 14" | 10" | BTL4141410 | 87.87 |
| 14" | 14" | 12" | BTL4141412 | 87.87 |
| 14" | 14" | 14" | BTL4141414 | 87.87 |
| 16" | 16" | 16" | BTL4161616 | CALL |
| 18" | 18" | 18" | BTL4181818 | CALL |
| LARGER SIZES AVAILABLE | CALL | |||
( Click on image for larger view )
Lateral Wyes .pdf Spec Sheet
TO ORDER CALL 877-904-4022

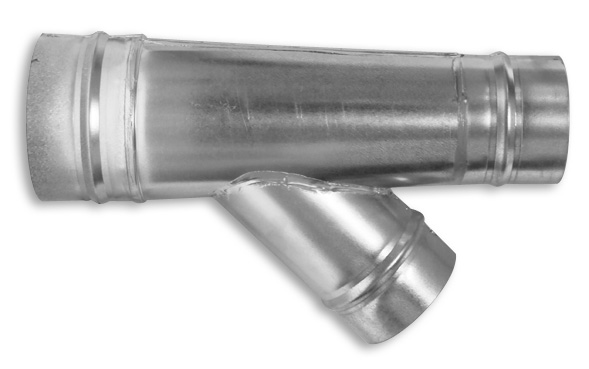

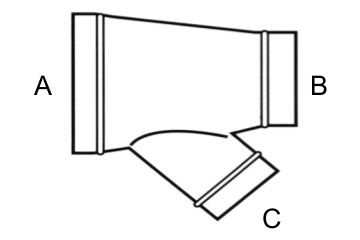

| 45° REDUCING WYES | ||||
| A | B | C | Part No. | Price |
|---|---|---|---|---|
| 4" | 3" | 3" | BTL4040303 | 58.66 |
| 5" | 4" | 3" | BTL4050403 | 60.31 |
| 5" | 4" | 4" | BTL4050404 | 60.31 |
| 6" | 4" | 3" | BTL4060403 | 61.11 |
| 6" | 4" | 4" | BTL4060404 | 61.11 |
| 6" | 5" | 3" | BTL4060503 | 61.11 |
| 6" | 5" | 4" | BTL4060504 | 61.11 |
| 6" | 5" | 5" | BTL4060505 | 61.11 |
| 7" | 4" | 4" | BTL4070404 | 62.83 |
| 7" | 5" | 4" | BTL4070504 | 62.83 |
| 7" | 5" | 5" | BTL4070505 | 62.83 |
| 7" | 6" | 4" | BTL4070604 | 62.83 |
| 7" | 6" | 5" | BTL4070605 | 62.83 |
| 7" | 6" | 6" | BTL4070606 | 62.83 |
| 8" | 6" | 4" | BTL4080604 | 66.27 |
| 8" | 6" | 5" | BTL4080605 | 66.27 |
| 8" | 6" | 6" | BTL4080606 | 66.27 |
| 8" | 7" | 4" | BTL4080704 | 66.27 |
| 8" | 7" | 5" | BTL4080705 | 66.27 |
| 8" | 7" | 6" | BTL4080706 | 66.27 |
| 8" | 7" | 7" | BTL4080707 | 66.27 |
| 10" | 8" | 6" | BTL4100806 | 76.34 |
| 10" | 8" | 7" | BTL4100807 | 76.34 |
| 10" | 8" | 8" | BTL4100808 | 76.34 |
| 12" | 8" | 6" | BTL4120806 | 86.77 |
| 12" | 8" | 8" | BTL4120808 | 86.77 |
| 12" | 10" | 6" | BTL4121006 | 86.77 |
| 12" | 10" | 8" | BTL4121008 | 86.77 |
| 12" | 10" | 10" | BTL4121010 | 86.77 |
| LARGER SIZES AVAILABLE | CALL | |||
