To Our Valued Customers:
Due to significant fluctuations in metal prices, there will be a 10% Surcharge on All Metal Products (excluding Non-Metal Flex Hose & Manual Cast Aluminium Blast Gates)
NOTE: .pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.

CLAMP TOGETHER REDUCERS

Our spun steel reducers feature a smooth tapered wall to minimize turbulance and prevent clogging. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom configurations are available.

CT SPUN REDUCERS

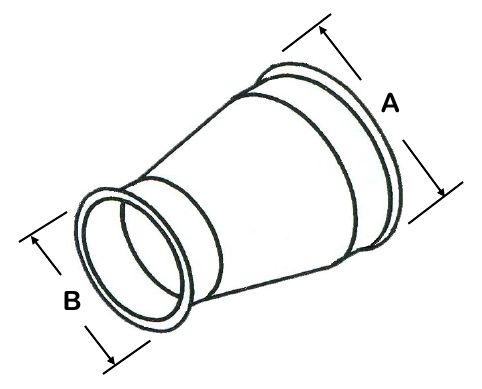

CT Reducer

Click on image for larger view

  • Galvanized steel spun wall construction.
  • Two rolled edge collars for our Clamp Together System.

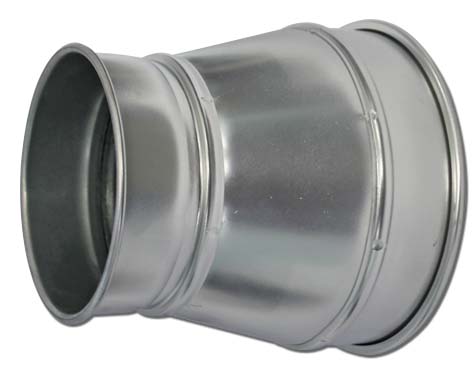

CT Reducer

Click on image for larger view

CT Reducer .pdf Spec Sheet
CT REDUCERS 35%
OFF
ABPart No.Price
4"3"CTR0403$ 59.51$ 38.69
5"3"CTR0503$ 60.61$ 39.40
5"4"CTR0504$ 60.61$ 39.40
6"3"CTR0603$ 63.80$ 41.47
6"4"CTR0604$ 63.80$ 41.47
6"5"CTR0605$ 63.80$ 41.47
7"3"CTR0703$ 64.24$ 41.76
7"4"CTR0704$ 64.24$ 41.76
7"5"CTR0705$ 64.24$ 41.76
7"6"CTR0706$ 64.24$ 41.76
8"4"CTR0804$ 65.45$ 42.55
8"5"CTR0805$ 65.45$ 42.55
8"6"CTR0806$ 65.45$ 42.55
8"7"CTR0807$ 65.45$ 42.55
9"5"CTR0905$ 74.14$ 48.20
9"6"CTR0906$ 74.14$ 48.20
9"7"CTR0907$ 74.14$ 48.20
9"8"CTR0908$ 74.14$ 48.20
10"6"CTR1006$ 75.35$ 48.98
10"7"CTR1007$ 75.35$ 48.98
10"8"CTR1008$ 75.35$ 48.98
10"9"CTR1009$ 75.35$ 48.98
11"10"CTR1110$ 88.77$ 57.71
12"6"CTR1206$ 88.77$ 57.71
12"7"CTR1207$ 88.77$ 57.71
12"8"CTR1208$ 88.77$ 57.71
12"9"CTR1209$ 88.77$ 57.71
12"10"CTR1210$ 88.77$ 57.71
12"11"CTR1211$ 88.77$ 57.71
14"8"CTR1408$ 105.82$ 68.79
14"9"CTR1409$ 105.82$ 68.79
14"10"CTR1410$ 105.82$ 68.79
14"11"CTR1411$ 105.82$ 68.79
14"12"CTR1412$ 105.82$ 68.79
16"10"CTR1610$ 145.97$ 94.89
16"12"CTR1612$ 145.97$ 94.89
16"14"CTR1614$ 145.97$ 94.89
18"12"CTR1812$ 152.94$ 99.42
18"14"CTR1814$ 152.94$ 99.42
18"16"CTR1816$ 152.94$ 99.42
20"14"CTR2014$ 161.81$ 105.18
20"16"CTR2016$ 161.81$ 105.18
20"18"CTR2018$ 161.81$ 105.18
22"16"CTR2216$ 184.36$ 119.84
22"18"CTR2218$ 184.36$ 119.84
22"20"CTR2220$ 184.36$ 119.84
24"14"CTR2414$ 203.17$ 132.07
24"16"CTR2416$ 203.17$ 132.07
24"18"CTR2418$ 203.17$ 132.07
24"20"CTR2420$ 203.17$ 132.07
24"22"CTR2422$ 203.17$ 132.07

TO ORDER CALL 877-904-4022

SQUARE TO ROUND CT REDUCERS

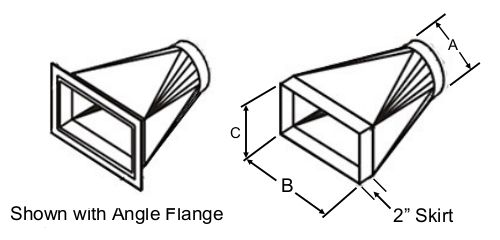

CT Square to Round

Click on image for larger view

  • Priced by round end Diameter A
  • Specify A, B, C dimensions
  • Square (rectangular) ends to be approx. size of round end
  • Standard with 2” skirt raw edge
  • Angle flange available at additional cost
  • Larger diameters available.

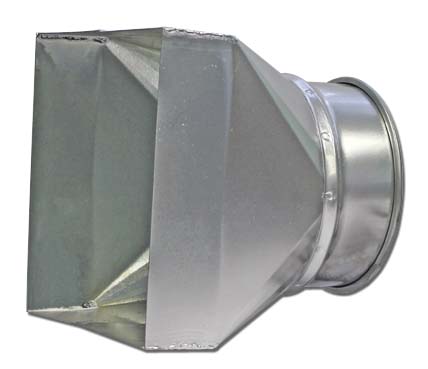

CT Square to Round

Click on image for larger view

Square to Round .pdf Spec Sheet
CT SQUARE TO ROUND 35%
OFF
APart No.Price
4"CTSQ04-BB-CC$ 123.53$ 80.30
5"CTSQ05-BB-CC$ 128.15$ 83.30
6"CTSQ06-BB-CC$ 132.77$ 86.31
7"CTSQ07-BB-CC$ 141.35$ 91.88
8"CTSQ08-BB-CC$ 147.62$ 95.96
9"CTSQ09-BB-CC$ 152.90$ 99.39
10"CTSQ10-BB-CC$ 158.29$ 102.89
11"CTSQ11-BB-CC$ 161.26$ 104.82
12"CTSQ12-BB-CC$ 161.26$ 104.82
14"CTSQ14-BB-CC$ 167.09$ 108.61
16"CTSQ16-BB-CC$ 175.34$ 113.98
18"CTSQ18-BB-CC$ 180.62$ 117.41
20"CTSQ20-BB-CC$ 186.78$ 121.41
22"CTSQ22-BB-CC$ 223.41$ 145.22
24"CTSQ24-BB-CC$ 257.29$ 167.24

TO ORDER CALL 877-904-4022

Made to your specification.
Please download our
SQUARE TO ROUND ORDER FORM.pdf

* pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.
