CLAMP TOGETHER ADAPTERS

Galvanized steel collars adapt most machines and hoses to our CT Clamp Together system. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes and custom diameters are available.

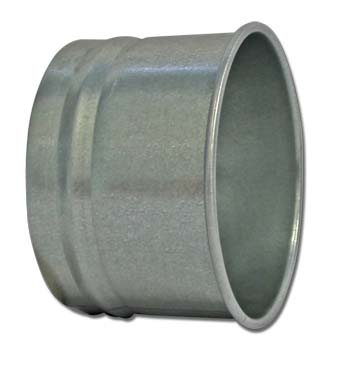

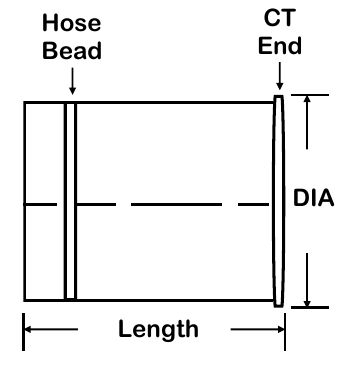

CT HOSE ADAPTERS

Click on image for larger view

• Adapts flex hose to our Clamp Together duct system
• Not designed for use with metal hoses
• One rolled edge, one raw end with retainer bead
• Nominal Length is 4.5 to 6 inches
• Larger diameters available

Click on image for larger view

CT Adapters .pdf Spec Sheet

CT HOSE ADAPTER			35% OFF
DIA.	Part No.	Price
3"	CTHA03	26.51	17.23
4"	CTHA04	26.51	17.23
5"	CTHA05	29.59	19.23
6"	CTHA06	34.76	22.59
7"	CTHA07	37.51	24.38
8"	CTHA08	40.17	26.11
9"	CTHA09	42.46	27.60
10"	CTHA10	45.10	29.32
11"	CTHA11	48.29	31.39
12"	CTHA12	48.29	31.39
14"	CTHA14	50.93	33.10
16"	CTHA16	53.35	34.68
18"	CTHA18	58.85	38.25
20"	CTHA20	60.72	39.47
22"	CTHA22	66.88	43.47
24"	CTHA24	76.78	49.91

TO ORDER CALL 877-904-4022

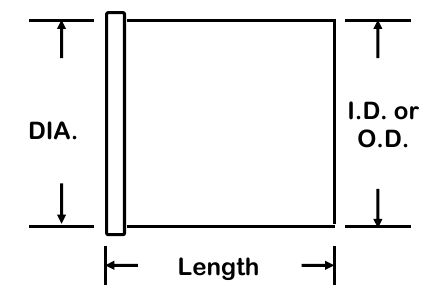

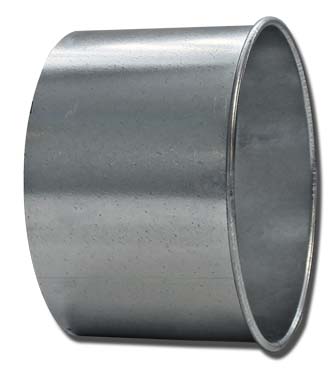

CT MACHINE ADAPTER

Click on image for larger view

• Adapts most machines to our CT Clamp Together system.
• One end raw, other end is rolled edge
• Approx. lengths 4” - 5.5”
• Please specify I.D. or O.D. when ordering

Click on image for larger view

CT Adapters .pdf Spec Sheet

CT MACHINE ADAPTER			35% OFF
DIA.	Part No.	Price
3"	CTMA03	26.18	17.02
4"	CTMA04	26.18	17.02
5"	CTMA05	29.04	18.88
6"	CTMA06	34.10	22.17
7"	CTMA07	36.52	23.74
8"	CTMA08	39.38	25.60
9"	CTMA09	41.69	27.10
10"	CTMA10	44.44	28.89
11"	CTMA11	47.30	30.75
12"	CTMA12	47.30	30.75
14"	CTMA14	50.05	32.53
16"	CTMA16	52.36	34.03
18"	CTMA18	57.75	37.54
20"	CTMA20	59.73	38.82
22"	CTMA22	65.56	42.61
24"	CTMA24	75.57	49.12

TO ORDER CALL 877-904-4022
