CT PIPE HANGERS

A variety of threaded rod pipe hangers for any application. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger and custom hangers are available.

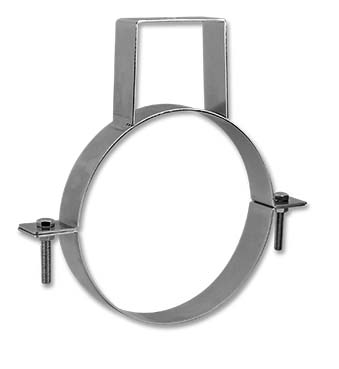

PIPE HANGER CTHJ

Click on image for larger view

14 ga. galvanized steel construction
Bolts are supplied with hanger
Threaded rod sold separately
3” to 24” Standard, Larger diameters available.

Pipe Hangers .pdf Spec Sheet

Size	Part No.	Price	35% OFF
PIPE HANGER CTHJ			35% OFF
3"	CTHJ03	17.27	11.23
4"	CTHJ04	17.27	11.23
5"	CTHJ05	19.36	12.59
6"	CTHJ06	21.89	14.23
7"	CTHJ07	21.89	14.23
8"	CTHJ08	26.18	17.02
9"	CTHJ09	32.34	21.03
10"	CTHJ10	34.43	22.38
11"	CTHJ11	38.17	24.82
12"	CTHJ12	38.17	24.82
13"	CTHJ13	43.56	28.32
14"	CTHJ14	43.56	28.32
15"	CTHJ15	59.84	38.90
16"	CTHJ16	59.84	38.90
18"	CTHJ18	62.26	40.47
20"	CTHJ20	65.78	42.76
22"	CTHJ22	80.74	52.49
24"	CTHJ24	92.95	60.42
Larger sizes available.		CALL

TO ORDER CALL 877-904-4022

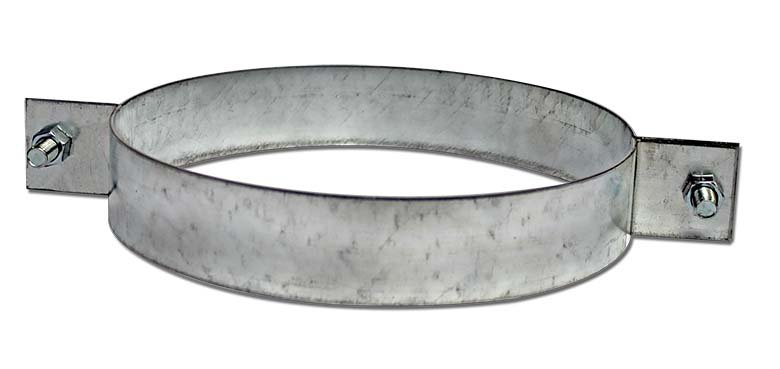

2 PIECE PIPE HANGER

Click on images for larger view

1.5 inches wide, 14 gauge Galvanized Steel
Use as a single or double rod hanger (see illustration)
Threaded rod sold separately
3 - 24" Standard, Larger sizes available.

Pipe Hangers .pdf Spec Sheet
TO ORDER CALL 877-904-4022

Size	Part No.	Price	35% OFF
2 PC. PIPE HANGERS			35% OFF
3"	HR03	8.69	5.65
4"	HR04	8.69	5.65
5"	HR05	11.00	7.15
6"	HR06	11.00	7.15
7"	HR07	11.00	7.15
8"	HR08	13.20	8.58
9"	HR09	16.39	10.65
10"	HR10	17.16	11.15
11"	HR11	19.14	12.44
12"	HR12	19.14	12.44
14"	HR14	21.78	14.16
16"	HR16	28.27	18.38
18"	HR18	30.03	19.52
20"	HR20	32.89	21.38
22"	HR22	40.48	26.31
24"	HR24	46.31	30.10
Larger sizes available.		CALL

Eye Coupling

3/8" Threaded Sleeve
3/8" I.D. Eye Hole
Priced Each

Size	Part No.	Price	35% OFF
3/8" EYE COUPLINGS			35% OFF
3/8"	TREC38E	2.46	1.60

CABLE HANGERS

LOOPED CABLE

Sold as a kit with a cable lock
15 ft. Long

Dia	lbs.	Part No.	Price
LOOPED CABLE KIT
3/32"	150	DTLCK33215E	10.23
1/8"	250	DTLCK1815E	13.29

KV BRACKET

Used for hanging rectangular duct
KV Bracket must be hung at a 90 degree angle to the suspension point
Load range 25-150 lbs.
Sold in a 10 count box.

Quantity	Part No.	Price
KV BRACKETS
Box of 10	DTKV12	38.22

Cable Hangers .pdf Spec Sheet

TO ORDER CALL 877-904-4022

GALVANIZED CABLE

Aviation grade galvanized wire rope

Size	lbs.	Part No.	Price
GALVANIZED CABLE
3/32" x 500'	150	DTWR332500	84.69
1/8" x 500'	250	DTWR18500	94.96
3/16" x 250'	640	DTWR316250	84.60

CABLE LOCKS

( Click on images for larger view )

Secure cable locks allow easy no tools adjustment.
Sold in a box of 10.

Cable	Load	Part No.	Price
CABLE LOCKS
3/32"	25-150	DTCL12	30.26
3/32-1/8"	150-250	DTCL18	45.50
1/8-3/16"	250-640	DTCL23	65.51

CABLE CUTTER

Spring loaded jaws
Hardened Steel Blades
Vinyl Non-Slip Handles
more info

Size	Part No.	Price
CABLE CUTTER
Cable Cutter	DTRWC	70.77
