To Our Valued Customers:
Due to significant fluctuations in metal prices, there will be a 10% Surcharge on All Metal Products (excluding Non-Metal Flex Hose & Manual Cast Aluminium Blast Gates)
NOTE: .pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.

CLAMP TOGETHER PIPE & CLAMPS


  • Fast and Easy Installation.
  • No Screws or Sealing necessary.
  • Easily removable for cleaning.
  • Adjustable clamp = perfect fit.
  • Many CT Fittings and Adapters.
  • In stock for immediate shipment.

Seam welded galvanized steel Clamp Together pipe sold in UPS shippable 5 foot lengths. Our adjustable sleeve and clamp system delivers a perfect fit everytime! Ideal for Dust Collection, Fume Venting, and HVAC systems.

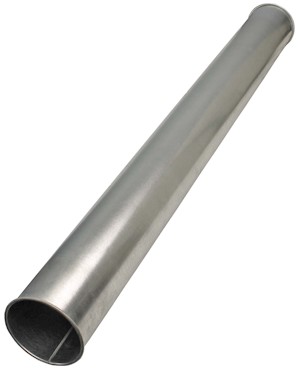

CLAMP TOGETHER PIPE

Clamp Together Clamp Together Pipe
  • Seam welded Galvanized Steel with two rolled ends.
  • Sold in UPS shippable 5 foot sections.
  • For dust collection, fume venting, and HVAC systems.
  • 3” to 24” standard diameter.
Clamp Together Pipe

Click on image for larger view

Clamp-Together Pipe .pdf Spec Sheet
CLAMP TOGETHER PIPE 5FT. 35%
OFF
DIA.Part No.Price
3"CTPIPE03 $ 34.8722.67
4"CTPIPE04 $ 34.8722.67
5"CTPIPE05 $ 38.1724.81
6"CTPIPE06 $ 45.9829.89
7"CTPIPE07 $ 56.3236.61
8"CTPIPE08 $ 63.2541.11
9"CTPIPE09 $ 68.4244.47
10"CTPIPE10 $ 73.5947.83
11"CTPIPE11 $ 88.2257.34
12"CTPIPE12 $ 88.2257.34
14"CTPIPE14 $113.6373.86
16"CTPIPE16 $147.5195.88
18"CTPIPE18 $162.58105.68
20"CTPIPE20 $195.14126.84
22"CTPIPE22 $215.93140.35
24"CTPIPE24 $248.38161.45


TO ORDER CALL 877-904-4022

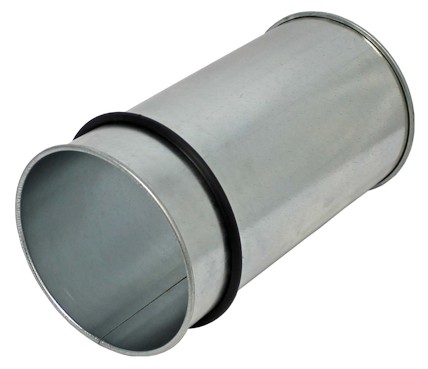

CT ADJUSTABLE SLEEVE

CT Adjustable Sleeve

Click on image for larger view

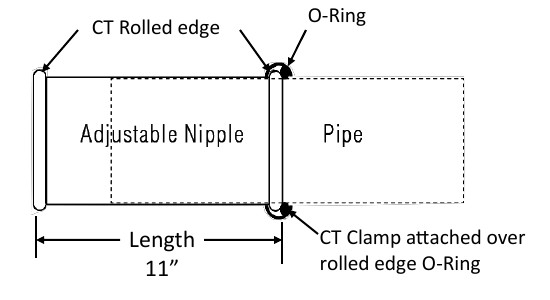

  • Used to provide variable length adjustment of CT pipe system
  • Black O-Ring included, High Temp Red O-Ring available
  • Sleeve length 11 inches
CT Adjustable Sleeve

Click on image for larger view

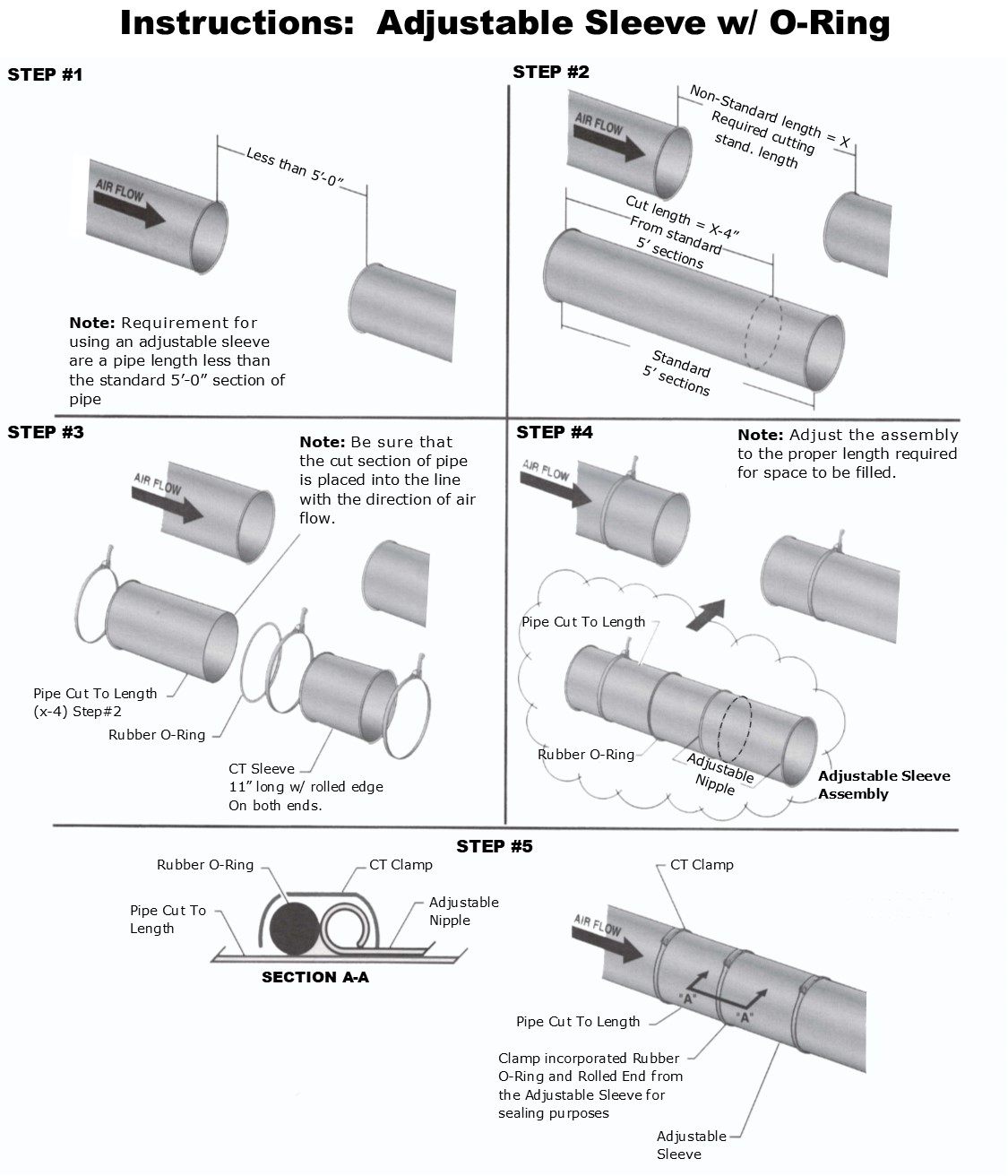

Clamp-Together Instructions

Clamp-Together Pipe .pdf Spec Sheet

CT ADJUSTABLE SLEEVES 35%
OFF
DIA.Part No.Price
3"CTSLEEVE03 $ 21.1213.73
4"CTSLEEVE04 $ 21.1213.73
5"CTSLEEVE05 $ 21.5614.01
6"CTSLEEVE06 $ 22.2214.44
7"CTSLEEVE07 $ 26.6217.30
8"CTSLEEVE08 $ 27.1717.66
9"CTSLEEVE09 $ 28.6018.59
10"CTSLEEVE10 $ 29.1518.95
11"CTSLEEVE11 $ 33.3321.66
12"CTSLEEVE12 $ 33.3321.66
14"CTSLEEVE14 $ 45.1029.32
16"CTSLEEVE16 $ 51.8133.68
18"CTSLEEVE18 $ 60.5039.33
20"CTSLEEVE20 $ 74.1448.19
22"CTSLEEVE22 $ 87.6756.99
24"CTSLEEVE24 $100.8765.57


TO ORDER CALL 877-904-4022

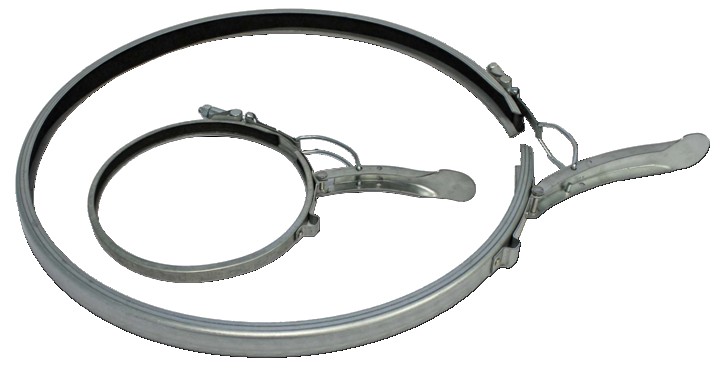

CT ADJUSTABLE CLAMP

CT Adjustable Clamp

Click on image for larger view

  • Adjustment screw provides variable tension for a perfect fit
  • Internal gasket seal included
  • Stainless Steel clamps available.

Clamp-Together Instructions

Clamp-Together Pipe .pdf Spec Sheet

TO ORDER CALL 877-904-4022

CT ADJUSTABLE CLAMPS 35%
OFF
DIA.Part No.Price
3"CTCLAMP03 $ 11.007.15
4"CTCLAMP04 $ 11.777.65
5"CTCLAMP05 $ 12.658.22
6"CTCLAMP06 $ 13.098.51
7"CTCLAMP07 $ 13.758.94
8"CTCLAMP08 $ 14.199.22
9"CTCLAMP09 $ 14.639.51
10"CTCLAMP10 $ 15.9510.37
11"CTCLAMP11 $ 17.2711.23
12"CTCLAMP12 $ 17.2711.23
14"CTCLAMP14 $ 18.8112.23
16"CTCLAMP16 $ 20.7913.51
18"CTCLAMP18 $ 21.5614.01
20"CTCLAMP20 $ 22.5514.66
22"CTCLAMP22 $ 23.6515.37
24"CTCLAMP24 $ 27.1717.66


* pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.
