THE BLASTGATE COMPANY

CLAMP TOGETHER ELBOWS

Galvanized steel elbows with rolled edge collars for our Clamp Together pipe system. 12 inch diameter and below are press formed, 14 inch and above feature welded segment construction. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes, 1.0 C.L.R. small radius versions, and custom elbows are available.

90° CLAMP TOGETHER ELBOWS

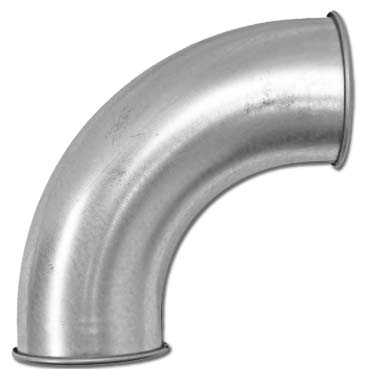

3" - 7" Press Formed Elbows
Clamp Together Elbows Clamp Together Elbows

Click on images for larger view

  • Galvanized 24 gauge steel construction
  • Two rolled ends for Clamp Together system.
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems
90° PRESSED CT ELBOWS 35%
OFF
SizePart No.Price
3"CTEL9003 $ 46.40 $ 30.16
4"CTEL9004 $ 57.30 $ 37.25
5"CTEL9005 $ 63.50 $ 41.28
6"CTEL9006 $ 71.50 $ 46.48
7"CTEL9007 $ 95.40 $ 62.01

TO ORDER CALL 877-904-4022

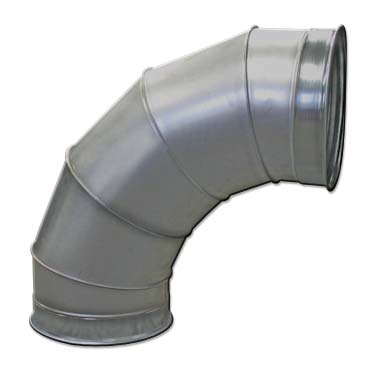

8" - 24" Segmented Elbows
Clamp Together Segmented Elbows Clamp Together Segmented Elbows

Click on images for larger view

  • Galvanized steel all welded construction
  • Two rolled ends for Clamp Together system
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems

CT Elbows .pdf Spec Sheet

90° SEGMENTED CT ELBOWS 35%
OFF
SizePart No.Price
8"CTEL9008 $139.00 $ 90.35
9"CTEL9009 $144.30 $ 93.80
10"CTEL9010 $150.20 $ 97.63
11"CTEL9011 $190.70 $123.96
12"CTEL9012 $190.70 $123.96
14"CTEL9014 $202.60 $131.69
16"CTEL9016 $207.90 $135.14
18"CTEL9018 $292.30 $190.00
20"CTEL9020 $341.00 $221.65
22"CTEL9022 $438.70 $285.16
24"CTEL9024 $504.40 $327.86
Larger sizes available.CALL

45° CLAMP TOGETHER ELBOWS

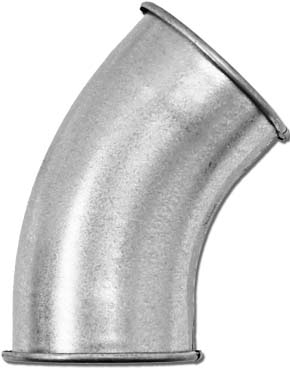

3" - 7" Press Formed Elbows
Clamp Together Elbows Clamp Together Elbows

Click on images for larger view

  • Galvanized 24 gauge steel construction
  • Two rolled ends for Clamp Together system.
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems
45° PRESSED CT ELBOWS 35%
OFF
SizePart No.Price
3"CTEL4503 $ 41.90 $ 27.24
4"CTEL4504 $ 48.90 $ 31.79
5"CTEL4505 $ 54.10 $ 35.17
6"CTEL4506 $ 64.30 $ 41.80
7"CTEL4507 $ 90.60 $ 58.89


TO ORDER CALL 877-904-4022

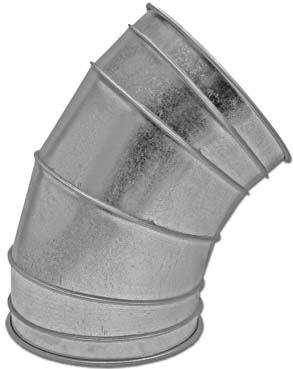

8" - 24" Segmented Elbows
Clamp Together Elbows Clamp Together Elbows

Click on images for larger view

  • Galvanized steel all welded construction
  • Two rolled ends for Clamp Together system.
  • Long radius, 1.5 center line radius
  • Airtight
  • Recommended for dust collection and suction systems

CT Elbows .pdf Spec Sheet

45° SEGMENTED CT ELBOWS 35%
OFF
SizePart No.Price
8"CTEL4508 $ 97.90 $ 63.64
9"CTEL4509 $ 99.70 $ 64.81
10"CTEL4510 $103.90 $ 67.54
11"CTEL4511 $109.80 $ 71.37
12"CTEL4512 $109.80 $ 71.37
14"CTEL4514 $118.40 $ 76.96
16"CTEL4516 $158.70 $103.16
18"CTEL4518 $182.60 $118.69
20"CTEL4520 $218.20 $141.83
22"CTEL4522 $250.40 $162.76
24"CTEL4524 $288.10 $187.27
Larger sizes available.CALL
