THE BLASTGATE COMPANY

CLAMP TOGETHER 45° BRANCHES

Our Clamp Together Lateral Wye Branches are the preferred way to combine branch runs. Ideal for Dust Collection, Fume Venting, and HVAC systems. Larger sizes, 30° and 60° versions, and custom configurations are available.

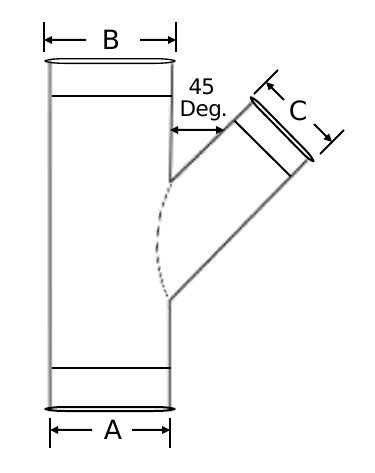

CLAMP TOGETHER 45° WYE BRANCHES

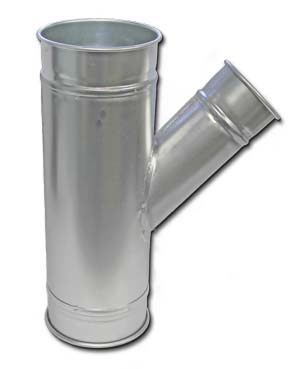

CT 45 Deg. Wye Branch

Click on image for larger view

  • 45 degree Lateral Wye Branch
  • Three rolled edges for our Clamp Together system.
  • Airtight
  • Galvanized steel fully welded construction
  • Larger sizes, 30° and 60° versions available

CT 45 Deg. Wye Branch

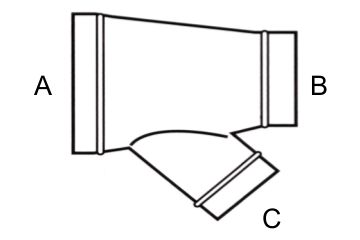

Reducing Wye Branch
CT 45 Deg. Wye Branch
CT Branches .pdf Spec Sheet

TO ORDER CALL 877-904-4022

CT 45° WYE BRANCHES 35%
OFF
ABCPart No.Price
3"3"3"CTB030303 $128.00 $ 83.20
4"BCPart No.Price35% OFF
4"3"3"CTB040303 $128.00 $ 83.20
4"4"3"CTB040403 $128.00 $ 83.20
4"4"4"CTB040404 $128.00 $ 83.20
5"BCPart No.Price35% OFF
5"4"3"CTB050403 $134.80 $ 87.62
5"4"4"CTB050404 $134.80 $ 87.62
5"5"4"CTB050504 $134.80 $ 87.62
5"5"5"CTB050505 $134.80 $ 87.62
6"BCPart No.Price35% OFF
6"4"3"CTB060403 $139.30 $ 90.55
6"4"4"CTB060404 $139.30 $ 90.55
6"5"3"CTB060503 $139.30 $ 90.55
6"5"4"CTB060504 $139.30 $ 90.55
6"5"5"CTB060505 $139.30 $ 90.55
6"6"3"CTB060603 $139.30 $ 90.55
6"6"4"CTB060604 $139.30 $ 90.55
6"6"5"CTB060605 $139.30 $ 90.55
6"6"6"CTB060606 $139.30 $ 90.55
7"BCPart No.Price35% OFF
7"4"4"CTB070404 $141.50 $ 91.98
7"5"4"CTB070504 $141.50 $ 91.98
7"5"5"CTB070505 $141.50 $ 91.98
7"6"4"CTB070604 $141.50 $ 91.98
7"6"5"CTB070605 $141.50 $ 91.98
7"6"6"CTB070606 $141.50 $ 91.98
7"7"4"CTB070704 $141.50 $ 91.98
7"7"5"CTB070705 $141.50 $ 91.98
7"7"6"CTB070706 $141.50 $ 91.98
7"7"7"CTB070707 $141.50 $ 91.98
8"BCPart No.Price35% OFF
8"4"4"CTB080404 $144.80 $ 94.12
8"5"3"CTB080503 $144.80 $ 94.12
8"5"4"CTB080504 $144.80 $ 94.12
8"6"3"CTB080603 $144.80 $ 94.12
8"6"4"CTB080604 $144.80 $ 94.12
8"6"5"CTB080605 $144.80 $ 94.12
8"6"6"CTB080606 $144.80 $ 94.12
8"7"4"CTB080704 $144.80 $ 94.12
8"7"5"CTB080705 $144.80 $ 94.12
8"7"6"CTB080706 $144.80 $ 94.12
8"8"3"CTB080803 $144.80 $ 94.12
8"8"4"CTB080804 $144.80 $ 94.12
8"8"5"CTB080805 $144.80 $ 94.12
8"8"6"CTB080806 $144.80 $ 94.12
8"8"8"CTB080808 $144.80 $ 94.12
9"BCPart No.Price35% OFF
9"8"4"CTB090804 $151.60 $ 98.54
9"8"5"CTB090805 $151.60 $ 98.54
9"9"4"CTB090904 $151.60 $ 98.54
9"9"6"CTB090906 $151.60 $ 98.54
9"9"8"CTB090908 $151.60 $ 98.54
10"BCPart No.Price35% OFF
10"6"6"CTB100606 $161.70 $105.11
10"7"4"CTB100704 $161.70 $105.11
10"7"5"CTB100705 $161.70 $105.11
10"7"6"CTB100706 $161.70 $105.11
10"8"4"CTB100804 $161.70 $105.11
10"8"5"CTB100805 $161.70 $105.11
10"8"6"CTB100806 $161.70 $105.11
10"8"8"CTB100808 $161.70 $105.11
10"9"3"CTB100903 $161.70 $105.11
10"9"5"CTB100905 $161.70 $105.11
10"10"3"CTB101003 $161.70 $105.11
10"10"4"CTB101004 $161.70 $105.11
10"10"5"CTB101005 $161.70 $105.11
10"10"6"CTB101006 $161.70 $105.11
10"10"8"CTB101008 $161.70 $105.11
10"10"10"CTB101010 $161.70 $105.11
12"BCPart No.Price35% OFF
12"8"6"CTB120806 $179.70 $116.81
12"8"8"CTB120808 $179.70 $116.81
12"9"8"CTB120908 $179.70 $116.81
12"10"5"CTB121005 $179.70 $116.81
12"10"6"CTB121006 $179.70 $116.81
12"10"7"CTB121007 $179.70 $116.81
12"10"8"CTB121008 $179.70 $116.81
12"10"10"CTB121010 $179.70 $116.81
12"12"3"CTB121203 $179.70 $116.81
12"12"4"CTB121204 $179.70 $116.81
12"12"6"CTB121206 $179.70 $116.81
12"12"7"CTB121207 $179.70 $116.81
12"12"8"CTB121208 $179.70 $116.81
12"12"10"CTB121210 $179.70 $116.81
12"12"12"CTB121212 $179.70 $116.81
14"BCPart No.Price35% OFF
14"8"6"CTB140806 $210.80 $137.02
14"8"8"CTB140808 $210.80 $137.02
14"10"6"CTB141006 $210.80 $137.02
14"10"8"CTB141008 $210.80 $137.02
14"10"10"CTB141010 $210.80 $137.02
14"12"5"CTB141205 $210.80 $137.02
14"12"6"CTB141206 $210.80 $137.02
14"12"8"CTB141208 $210.80 $137.02
14"12"10"CTB141210 $210.80 $137.02
14"12"12"CTB141212 $210.80 $137.02
14"14"6"CTB141406 $210.80 $137.02
14"14"8"CTB141408 $210.80 $137.02
14"14"10"CTB141410 $210.80 $137.02
14"14"12"CTB141412 $210.80 $137.02
14"14"14"CTB141414 $210.80 $137.02
14"18"18"CTB141818 $210.80 $137.02
15"BCPart No.Price35% OFF
15"10"10"CTB151010 $264.00 $171.60
16"BCPart No.Price35% OFF
16"10"10"CTB161010 $242.70 $157.76
16"12"6"CTB161206 $242.70 $157.76
16"12"8"CTB161208 $242.70 $157.76
16"12"10"CTB161210 $242.70 $157.76
16"12"12"CTB161212 $242.70 $157.76
16"14"6"CTB161406 $242.70 $157.76
16"14"7"CTB161407 $242.70 $157.76
16"14"8"CTB161408 $242.70 $157.76
16"14"10"CTB161410 $242.70 $157.76
16"14"12"CTB161412 $242.70 $157.76
16"14"14"CTB161414 $242.70 $157.76
16"16"5"CTB161605 $242.70 $157.76
16"16"6"CTB161606 $242.70 $157.76
16"16"8"CTB161608 $242.70 $157.76
16"16"10"CTB161610 $242.70 $157.76
16"16"12"CTB161612 $242.70 $157.76
16"16"14"CTB161614 $242.70 $157.76
16"16"16"CTB161616 $242.70 $157.76
18"BCPart No.Price35% OFF
18"12"12"CTB181212 $264.00 $171.60
18"14"8"CTB181408 $264.00 $171.60
18"14"10"CTB181410 $264.00 $171.60
18"14"12"CTB181412 $264.00 $171.60
18"14"14"CTB181414 $264.00 $171.60
18"16"8"CTB181608 $264.00 $171.60
18"16"10"CTB181610 $264.00 $171.60
18"16"12"CTB181612 $264.00 $171.60
18"16"14"CTB181614 $264.00 $171.60
18"16"16"CTB181616 $264.00 $171.60
18"18"6"CTB181806 $264.00 $171.60
18"18"10"CTB181810 $264.00 $171.60
18"18"12"CTB181812 $264.00 $171.60
18"18"14"CTB181814 $264.00 $171.60
18"18"18"CTB181818 $264.00 $171.60
20"BCPart No.Price35% OFF
20"14"12"CTB201412 $317.80 $206.57
20"14"14"ctb201414 $317.80 $206.57
20"16"10"CTB201610 $317.80 $206.57
20"16"12"CTB201612 $317.80 $206.57
20"16"14"CTB201614 $317.80 $206.57
20"18"10"CTB201810 $317.80 $206.57
20"18"12"CTB201812 $317.80 $206.57
20"18"14"CTB201814 $317.80 $206.57
20"18"16"CTB201816 $317.80 $206.57
20"18"18"CTB201818 $317.80 $206.57
20"20"20"CTB202020 $317.80 $206.57
22"BCPart No.Price35% OFF
22"16"16"CTB221616 $399.70 $259.81
22"22"22"CTB222222 $399.70 $259.81
24"BCPart No.Price35% OFF
24"18"18"CTB241818 $459.60 $298.74
24"24"24"CTB242424 $459.60 $298.74
Larger diameters available.

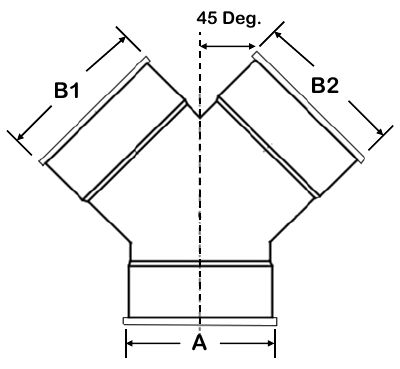

CLAMP TOGETHER 45° TRUE WYES

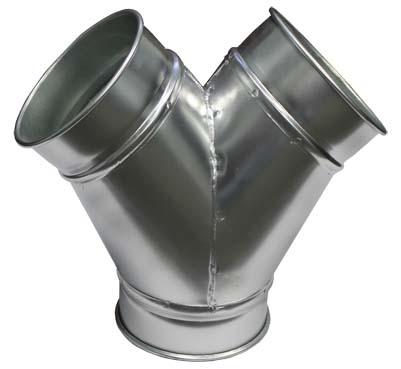

CT True Wye

Click on image for larger view

  • True Wye 'Pants Leg' design.
  • Three rolled edges for our Clamp Together system.
  • Airtight
  • Galvanized steel fully welded construction
  • Larger sizes, 30° and 60° models available

CT True Wye True Wyes .pdf Spec Sheet

TO ORDER CALL 877-904-4022

45° TRUE WYES 35%
OFF
AB1B2Part No.Price
3"3"3"CTY030303 $164.60 $106.99
4"B1B2Part No.Price35% OFF
4"3"3"CTY040303 $164.60 $106.99
4"4"4"CTY040404 $164.60 $106.99
5"B1B2Part No.Price35% OFF
5"3"3"CTY050303 $173.50 $112.78
5"4"4"CTY050404 $173.50 $112.78
5"5"5"CTY050505 $173.50 $112.78
6"B1B2Part No.Price35% OFF
6"4"4"CTY060404 $180.80 $117.52
6"5"5"CTY060505 $180.80 $117.52
6"6"6"CTY060606 $180.80 $117.52
7"B1B2Part No.Price35% OFF
7"4"4"CTY070404 $186.10 $120.97
7"5"5"CTY070505 $186.10 $120.97
7"6"6"CTY070606 $186.10 $120.97
7"7"7"CTY070707 $186.10 $120.97
8"B1B2Part No.Price35% OFF
8"4"4"CTY080404 $194.30 $126.30
8"5"5"CTY080505 $194.30 $126.30
8"6"6"CTY080606 $194.30 $126.30
8"7"7"CTY080707 $194.30 $126.30
8"8"8"CTY080808 $194.30 $126.30
10"B1B2Part No.Price35% OFF
10"4"4"CTY100404 $208.20 $135.33
10"6"6"CTY100606 $208.20 $135.33
10"8"8"CTY100808 $208.20 $135.33
10"10"10"CTY101010 $208.20 $135.33
12"B1B2Part No.Price35% OFF
12"6"6"CTY120606 $239.10 $155.42
12"8"8"CTY120808 $239.10 $155.42
12"10"10"CTY121010 $239.10 $155.42
12"12"12"CTY121212 $239.10 $155.42
14"B1B2Part No.Price35% OFF
14"8"8"CTY140808 $287.90 $187.14
14"10"10"CTY141010 $287.90 $187.14
14"12"12"CTY141212 $287.90 $187.14
14"14"14"CTY141414 $287.90 $187.14
16"B1B2Part No.Price35% OFF
16"10"10"CTY161010 $320.20 $208.13
16"12"12"CTY161212 $320.20 $208.13
16"14"14"CTY161414 $320.20 $208.13
16"16"16"CTY161616 $320.20 $208.13
18"B1B2Part No.Price35% OFF
18"12"12"CTY181212 $355.70 $231.21
18"14"14"CTY181414 $355.70 $231.21
18"16"16"CTY181616 $355.70 $231.21
18"18"18"CTY181818 $355.70 $231.21
20"B1B2Part No.Price35% OFF
20"14"14"CTY201414 $423.20 $275.08
20"16"16"CTY201616 $423.20 $275.08
20"18"18"CTY201818 $423.20 $275.08
20"20"20"CTY202020 $423.20 $275.08
22"B1B2Part No.Price35% OFF
22"14"14"CTY221414 $486.10 $315.97
22"16"16"CTY221616 $486.10 $315.97
22"18"18"CTY221818 $486.10 $315.97
22"20"20"CTY222020 $486.10 $315.97
22"22"22"CTY222222 $486.10 $315.97
24"B1B2Part No.Price35% OFF
24"18"18"CTY241818 $559.20 $363.48
24"20"20"CTY242020 $559.20 $363.48
24"22"22"CTY242222 $559.20 $363.48
24"24"24"CTY242424 $559.20 $363.48
Larger sizes available.
