Clamp Together Manual Blast Gates

Blast gates (also called cut-offs) are used to open and close branch ducts in a system allowing air to be diverted only to machines that are operating, thus conserving air volume. Sliding galvanized blade features a locking screw for full volume control including balancing. Ideal for Dust Collection, Fume Venting, and HVAC systems.

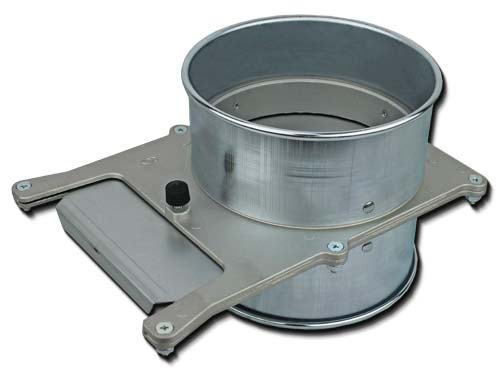

CLAMP TOGETHER Cast Aluminum Blast Gates

CT Aluminum Blast Gate

Click on image for larger view

  • Two rolled edge collars for our Clamp Together system.
  • Cast Aluminum body with galvanized slide and collars.
  • Economically designed. Locking screw included
  • Bolt-together construction for ease of disassembly and cleaning
  • Maximum temperature 400° F
  • Available in sizes from 2” to 24”
  • Stainless steel slide and automatic versions available.
CT ALUMINUM BLAST GATE 35%
OFF
SizePart No.Price
3"BGFRE03 $ 39.40 $ 25.61
4"BGFRE04 $ 39.40 $ 25.61
5"BGFRE05 $ 41.00 $ 26.65
6"BGFRE06 $ 53.90 $ 35.04
7"BGFRE07 $ 63.80 $ 41.47
8"BGFRE08 $ 75.50 $ 49.08
9"BGFRE09 $104.50 $ 67.93
10"BGFRE10 $132.80 $ 86.32
12"BGFRE12 $172.40 $112.06
14"BGFRE014 $255.30 $165.95
16"BGFRE016 $371.50 $241.48
18"BGFRE018 $472.00 $306.80
20"BGFRE020 $584.80 $380.12
22"BGFRE022 $638.40 $414.96
24"BGFRE024 $754.40 $490.36

TO ORDER CALL 877-904-4022

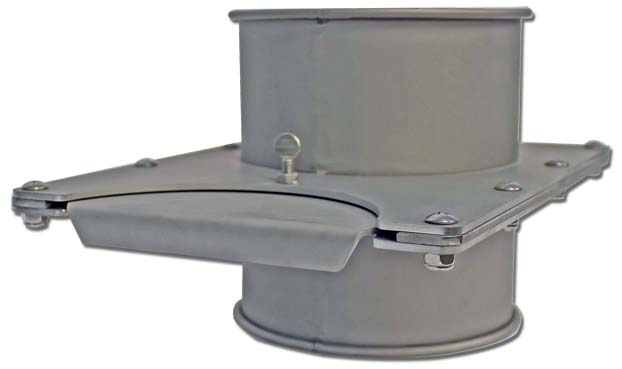

CLAMP TOGETHER 304 Stainless Steel Blast Gates

CT 304 Stainless Blast Gate

Click on image for larger view

  • Two rolled edge collars for our Clamp Together system.
  • For applications requiring superior corrosion resistance.
  • All Stainless Steel construction with locking screw
  • 12 gauge stainless body, 12 gauge slide blade
CT 304 STAINLESS BLAST GATE 35%
OFF
SizePart No.Price
3"BGRE03SS $173.90 $113.04
4"BGRE04SS $173.90 $113.04
5"BGRE05SS $204.00 $132.60
6"BGRE06SS $277.00 $180.05
7"BGRE07SS $290.30 $188.70
8"BGRE08SS $294.70 $191.56
9"BGRE09SS $379.50 $246.68
10"BGRE10SS $409.70 $266.31
11"BGRE11SS $517.90 $336.64
12"BGRE12SS $517.90 $336.64
14"BGRE014SS $598.30 $388.90
16"BGRE016SS $1112.00 $722.80
18"BGRE18SS $1226.00 $796.90
20"BGRE20SS $1779.00 $1156.35
22"BGRE22SS $1826.00 $1186.90
24"BGRE24SS $1878.00 $1220.70

TO ORDER CALL 877-904-4022
