THE BLASTGATE COMPANY
To Our Valued Customers:
Due to significant fluctuations in metal prices, there will be a 10% Surcharge on All Metal Products (excluding Non-Metal Flex Hose & Manual Cast Aluminium Blast Gates)
NOTE: .pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.

CLAMP TOGETHER
ANGLE RING FLANGE ADAPTERS & TAPS

Angle Ring flanges adapt our Clamp Together pipe and fittings for bolt together assembly and for attachment to walls and cabinets. Cut In Saddles retrofit new branches to existing systems. Ideal for Dust Collection, Fume Venting, and HVAC systems.

CT ANGLE RING FLANGE ADAPTERS

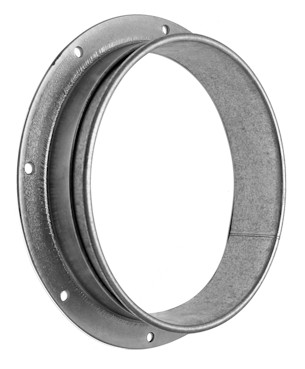

CT Angle Ring Flange Adapters

  • Rolled edge collar for our Clamp Together system.
  • Galvanized steel construction standard.
  • 3” to 5” are press formed, 6” and up are rolled.
  • Optional Flat Flange available at additional cost.
  • Rubber gaskets available.
  • Fasteners not included.

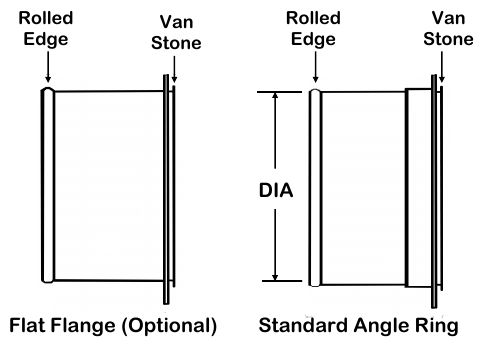

Angle Ring Drawing

Click on image for larger view

CT Angle Ring .pdf Spec Sheet
CT ANGLE RING FLANGES 35%
OFF
SizePart No.Price
3"CTAFA03$ 55.33$ 35.96
4"CTAFA04$ 55.33$ 35.96
5"CTAFA05$ 58.19$ 37.82
6"CTAFA06$ 69.63$ 45.26
7"CTAFA07$ 75.24$ 48.91
8"CTAFA08$ 78.32$ 50.91
9"CTAFA09$ 87.67$ 56.99
10"CTAFA10$ 92.40$ 60.06
11"CTAFA11$ 102.41$ 66.57
12"CTAFA12$ 102.41$ 66.57
13"CTAFA13$ 106.81$ 69.43
14"CTAFA14$ 106.81$ 69.43
15"CTAFA15$ 116.16$ 75.50
16"CTAFA16$ 116.16$ 75.50
17"CTAFA17$ 125.95$ 81.87
18"CTAFA18$ 125.95$ 81.87
20"CTAFA20$ 133.87$ 87.02
22"CTAFA22$ 143.33$ 93.16
24"CTAFA24$ 164.78$ 107.11
Larger diameters available.CALL

TO ORDER CALL 877-904-4022

CLAMP TOGETHER IN CUT SADDLES

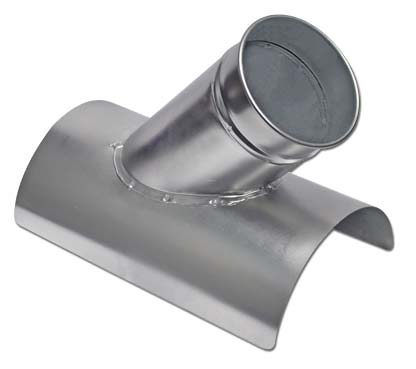

CT Cut In Saddle

Click on image for larger view

  • Rolled edge collar for our Clamp Together pipe system.
  • Priced by the B tap diameter
  • Specify B tap diameter and A pipe diameter
  • Standard rolled end 30°, 45°, 60° angles available
  • 26” and up are flanged. Additional cost for flange(s)
  • Larger diameters available.

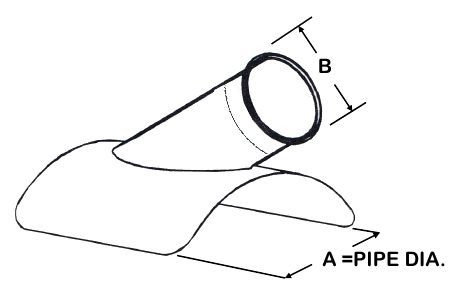

CT Cut In Saddle

Click on image for larger view

CT Saddle Taps .pdf Spec Sheet
CT CUT IN SADDLES 35%
OFF
B DIAPart No.Price
3"CTIC03-AA$ 63.69$ 41.40
4"CTIC04-AA$ 63.69$ 41.40
5"CTIC05-AA$ 65.23$ 42.40
6"CTIC06-AA$ 70.07$ 45.55
7"CTIC07-AA$ 74.14$ 48.19
8"CTIC08-AA$ 77.66$ 50.48
9"CTIC09-AA$ 81.07$ 52.70
10"CTIC10-AA$ 87.67$ 56.99
11"CTIC11-AA$ 94.38$ 61.35
12"CTIC12-AA$ 94.38$ 61.35
14"CTIC14-AA$ 106.81$ 69.43
16"CTIC16-AA$ 120.45$ 78.29
18"CTIC18-AA$ 133.65$ 86.87
20"CTIC20-AA$ 212.52$ 138.14
22"CTIC22-AA$ 292.38$ 190.05
24"CTIC24-AA$ 336.49$ 218.72
26"CTIC26-AA$ 423.94$ 275.56
28"CTIC28-AA$ 463.43$ 301.23
30"CTIC30-AA$ 512.71$ 333.26
Larger sizes availbleCALL

TO ORDER CALL 877-904-4022

* pdf catalogs and spec sheets may not reflect recent increases in steel costs. Please refer to the website or call us or email for current pricng.
