Heavy duty welded elbows with flanged ends designed for removal of large or heavy materials or abraisive media. Larger sizes and custom configurations are available.
Click on image for larger view
Click on image for larger view
| Part No. | Diameter | Gauge |
|---|---|---|
| Pipe | ||
| HDEL9 | AA | -GA |
| HD 90 DEG ELBOWS | |||
|---|---|---|---|
| DIA. | GA | Part No. | Price |
| 8" | 12 | HDEL908-12 | CALL |
| 8" | 14 | HDEL908-14 | CALL |
| 8" | 18 | HDEL908-18 | CALL |
| 10" | 12 | HDEL910-12 | CALL |
| 10" | 14 | HDEL910-14 | CALL |
| 10" | 18 | HDEL910-18 | CALL |
| 12" | 12 | HDEL912-12 | CALL |
| 12" | 14 | HDEL912-14 | CALL |
| 12" | 18 | HDEL912-18 | CALL |
| 14" | 12 | HDEL914-12 | CALL |
| 14" | 14 | HDEL914-14 | CALL |
| 14" | 18 | HDEL914-18 | CALL |
| 16" | 12 | HDEL916-12 | CALL |
| 16" | 14 | HDEL916-14 | CALL |
| 16" | 18 | HDEL916-18 | CALL |
| 18" | 12 | HDEL918-12 | CALL |
| 18" | 14 | HDEL918-14 | CALL |
| 18" | 18 | HDEL918-18 | CALL |
| 20" | 12 | HDEL920-12 | CALL |
| 20" | 14 | HDEL920-14 | CALL |
| 20" | 18 | HDEL920-18 | CALL |
| 22" | 12 | HDEL922-12 | CALL |
| 22" | 14 | HDEL922-14 | CALL |
| 22" | 18 | HDEL922-18 | CALL |
| 24" | 12 | HDEL924-12 | CALL |
| 24" | 14 | HDEL924-14 | CALL |
| 24" | 18 | HDEL924-18 | CALL |
| 26" | 12 | HDEL926-12 | CALL |
| 26" | 14 | HDEL926-14 | CALL |
| 26" | 16 | HDEL926-16 | CALL |
| 28" | 12 | HDEL928-12 | CALL |
| 28" | 14 | HDEL928-14 | CALL |
| 28" | 16 | HDEL928-16 | CALL |
| 30" | 12 | HDEL930-12 | CALL |
| 30" | 14 | HDEL930-14 | CALL |
| 30" | 16 | HDEL930-16 | CALL |
| 32" | 12 | HDEL932-12 | CALL |
| 32" | 14 | HDEL932-14 | CALL |
| 32" | 16 | HDEL932-16 | CALL |
| 34" | 12 | HDEL934-12 | CALL |
| 34" | 14 | HDEL934-14 | CALL |
| 34" | 16 | HDEL934-16 | CALL |
| 36" | 12 | HDEL936-12 | CALL |
| 36" | 14 | HDEL936-14 | CALL |
| 36" | 16 | HDEL936-16 | CALL |
| 38" | 12 | HDEL938-12 | CALL |
| 38" | 14 | HDEL938-14 | CALL |
| 38" | 16 | HDEL938-16 | CALL |
| 40" | 12 | HDEL940-12 | CALL |
| 40" | 14 | HDEL940-14 | CALL |
| 40" | 16 | HDEL940-16 | CALL |
| 42" | 12 | HDEL942-12 | CALL |
| 42" | 14 | HDEL942-14 | CALL |
| 42" | 16 | HDEL942-16 | CALL |
| 44" | 12 | HDEL944-12 | CALL |
| 44" | 14 | HDEL944-14 | CALL |
| 44" | 16 | HDEL944-16 | CALL |
| 46" | 12 | HDEL946-12 | CALL |
| 46" | 14 | HDEL946-14 | CALL |
| 46" | 16 | HDEL946-16 | CALL |
| 48" | 12 | HDEL948-12 | CALL |
| 48" | 14 | HDEL948-14 | CALL |
| 48" | 16 | HDEL948-16 | CALL |

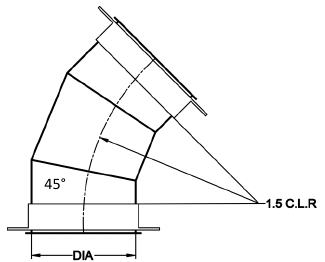

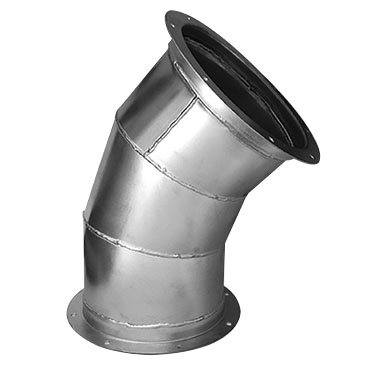

Click on image for larger view
Click on image for larger view
| Part No. | Diameter | Gauge |
|---|---|---|
| Pipe | ||
| HDEL4 | AA | -GA |
| HD 45 DEG ELBOWS | |||
|---|---|---|---|
| DIA. A | GA | Part No. | Price |
| 8" | 12 | HDEL408-12 | CALL |
| 8" | 14 | HDEL408-14 | CALL |
| 8" | 18 | HDEL408-18 | CALL |
| 10" | 12 | HDEL410-12 | CALL |
| 10" | 14 | HDEL410-14 | CALL |
| 10" | 18 | HDEL410-18 | CALL |
| 12" | 12 | HDEL412-12 | CALL |
| 12" | 14 | HDEL412-14 | CALL |
| 12" | 18 | HDEL412-18 | CALL |
| 14" | 12 | HDEL414-12 | CALL |
| 14" | 14 | HDEL414-14 | CALL |
| 14" | 18 | HDEL414-18 | CALL |
| 16" | 12 | HDEL416-12 | CALL |
| 16" | 14 | HDEL416-14 | CALL |
| 16" | 18 | HDEL416-18 | CALL |
| 18" | 12 | HDEL418-12 | CALL |
| 18" | 14 | HDEL418-14 | CALL |
| 18" | 18 | HDEL418-18 | CALL |
| 20" | 12 | HDEL420-12 | CALL |
| 20" | 14 | HDEL420-14 | CALL |
| 20" | 18 | HDEL420-18 | CALL |
| 22" | 12 | HDEL422-12 | CALL |
| 22" | 14 | HDEL422-14 | CALL |
| 22" | 18 | HDEL422-18 | CALL |
| 24" | 12 | HDEL424-12 | CALL |
| 24" | 14 | HDEL424-14 | CALL |
| 24" | 18 | HDEL424-18 | CALL |
| 26" | 12 | HDEL426-12 | CALL |
| 26" | 14 | HDEL426-14 | CALL |
| 26" | 16 | HDEL426-16 | CALL |
| 28" | 12 | HDEL428-12 | CALL |
| 28" | 14 | HDEL428-14 | CALL |
| 28" | 16 | HDEL428-16 | CALL |
| 30" | 12 | HDEL430-12 | CALL |
| 30" | 14 | HDEL430-14 | CALL |
| 30" | 16 | HDEL430-16 | CALL |
| 32" | 12 | HDEL432-12 | CALL |
| 32" | 14 | HDEL432-14 | CALL |
| 32" | 16 | HDEL432-16 | CALL |
| 34" | 12 | HDEL434-12 | CALL |
| 34" | 14 | HDEL434-14 | CALL |
| 34" | 16 | HDEL434-16 | CALL |
| 36" | 12 | HDEL436-12 | CALL |
| 36" | 14 | HDEL436-14 | CALL |
| 36" | 16 | HDEL436-16 | CALL |
| 38" | 12 | HDEL438-12 | CALL |
| 38" | 14 | HDEL438-14 | CALL |
| 38" | 16 | HDEL438-16 | CALL |
| 40" | 12 | HDEL440-12 | CALL |
| 40" | 14 | HDEL440-14 | CALL |
| 40" | 16 | HDEL440-16 | CALL |
| 42" | 12 | HDEL442-12 | CALL |
| 42" | 14 | HDEL442-14 | CALL |
| 42" | 16 | HDEL442-16 | CALL |
| 44" | 12 | HDEL444-12 | CALL |
| 44" | 14 | HDEL444-14 | CALL |
| 44" | 16 | HDEL444-16 | CALL |
| 46" | 12 | HDEL446-12 | CALL |
| 46" | 14 | HDEL446-14 | CALL |
| 46" | 16 | HDEL446-16 | CALL |
| 48" | 12 | HDEL448-12 | CALL |
| 48" | 14 | HDEL448-14 | CALL |
| 48" | 16 | HDEL448-16 | CALL |
| Other size and gauge combinations are available. Please call for availability and pricing. | |||
