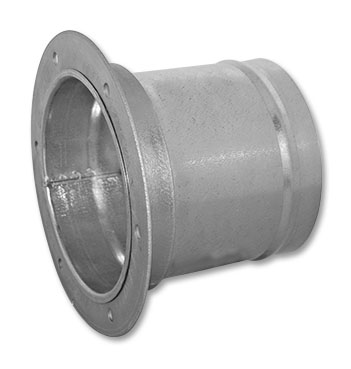

HD Hose Adapters

Adapts our HD angle flange to nearly any size or type of flexible hose. Our HD Heavy Duty duct system is designed for removal of large or heavy materials or abraisive media.

HD HOSE ADAPTERS

Click on image for larger view

• Galvanized 18 ga, 16 ga, 14 ga & 12 ga
• Standard style is one end raw, other end with angle flange
• Vanstone ends with rotational angle flange is standard
• Used to connect rubber flex hose
• Not designed for use with metal flex hose
• Please specify I.D. or O.D.
• NOTE: All hose diameter is I.D.

Click on image for larger view

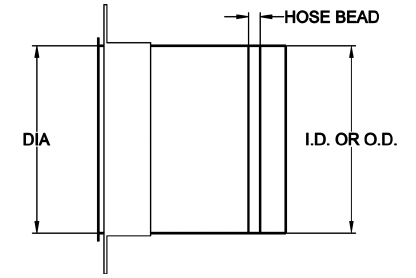

HDHA Part Number Explanation

Part No.	Diameter	Gauge
	Plate
HDHA	AA	-GA

HD Hose Adapters .pdf Spec Sheet

HD HOSE ADAPTERS
DIA.	GA	Part No.	Price
08"	14	HDHA08-14	CALL
08"	16	HDHA08-16	CALL
08"	18	HDHA08-18	CALL
10"	14	HDHA10-14	CALL
10"	16	HDHA10-16	CALL
10"	18	HDHA10-18	CALL
12"	14	HDHA12-14	CALL
12"	16	HDHA12-16	CALL
12"	18	HDHA12-18	CALL
14"	14	HDHA14-14	CALL
14"	16	HDHA14-16	CALL
14"	18	HDHA14-18	CALL
16"	14	HDHA16-14	CALL
16"	16	HDHA16-16	CALL
16"	18	HDHA16-18	CALL
18"	14	HDHA18-14	CALL
18"	16	HDHA18-16	CALL
18"	18	HDHA18-18	CALL
20"	14	HDHA20-14	CALL
20"	16	HDHA20-16	CALL
20"	18	HDHA20-18	CALL
22"	14	HDHA22-14	CALL
22"	16	HDHA22-16	CALL
22"	18	HDHA22-18	CALL
24"	14	HDHA24-14	CALL
24"	16	HDHA24-16	CALL
24"	18	HDHA24-18	CALL
Other sizes and gauges are available. Please call for availability and pricing.

TO ORDER CALL 877-904-4022
