HD Automatic Blast Gates

HD Automatic Blast Gates use pneumatic air cylinders controlled by electronically operated solinoid valves to provide automatic or remote control operation. Our HD Heavy Duty duct system is designed for removal of large or heavy materials or abraisive media.

HD AUTOMATIC BLAST GATES

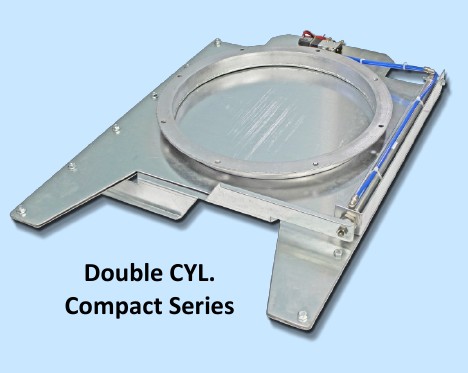

Click on image for larger view

• All galvanized, heavy duty 12 ga Body, 12 ga slide blade
• Pneumatic cylinder w/ internal magnet for use with signaling limit switch included. Signaling limit switches sold separately.
• Air valve with speed controls and fittings included
• Electric coil/solenoid included. Please specify voltage, 110VAC, 220VAC or 24VDC, 24VAC
• Vanstone ends with rotational angle flange standard
• Submittal drawings available

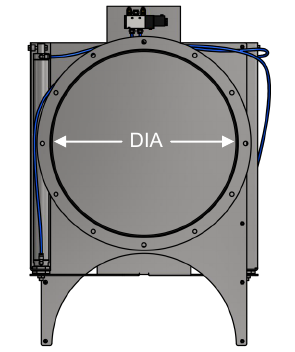

Click on image for larger view

BG Part Number Explanation

Part No.	Power	Diameter 08-24	Finish	Ends
	Pneumatic		Galv.	Ring
BG	PNC	AA	GA	R

HD Automatic Blastgates
.pdf Spec Sheet

HD AUTOMATIC BLAST GATES
DIA.	GA	Part No.	Price
08"	12	BGPNC08GAR	CALL
10"	12	BGPNC10GAR	CALL
12"	12	BGPNC12GAR	CALL
14"	12	BGPNC14GAR	CALL
16"	12	BGPNC16GAR	CALL
18"	12	BGPNC18GAR	CALL
20"	12	BGPNC20GAR	CALL
22"	12	BGPNC22GAR	CALL
Other sizes and gauges are available. Please call for availability and pricing.

TO ORDER CALL 877-904-4022
