THE BLASTGATE COMPANY

HD ANGLE RING FLANGES

Angle Ring flanges adapt pipe and fittings for bolt together assembly and for attachment to walls and cabinets. Ideal for Dust Collection, Fume Venting, and HVAC systems.

ANGLE RING FLANGES

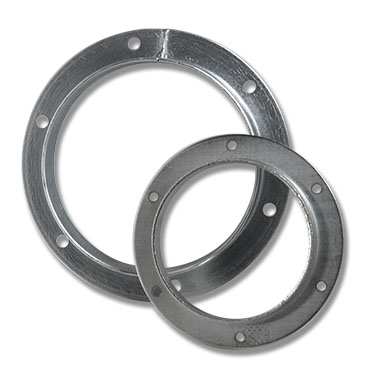

HD Angle Ring Flanges

( Click on image for larger view )

  • Galvanized construction standard.
  • Mild steel & stainless steel available.
  • Rubber gaskets available.
  • 3” to 5” are press formed.
  • 6” and up are rolled.
  • Fasteners not included.
  • Larger diameters available.

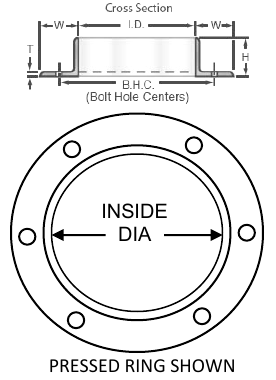

Our .pdf Spec Sheet contains full dimensions! HD Angle Ring .pdf Spec Sheet Angle Ring Drawing

HD ANGLE RING FLANGES
SizePart No.Price
3"AR03G $ 13.53
4"AR04G $ 14.83
5"AR05G $ 15.50
6"AR06G $ 17.96
7"AR07G $ 20.24
8"AR08G $ 17.60
9"AR09G $ 18.46
10"AR10G $ 21.66
11"AR11G $ 23.99
12"AR12G $ 31.38
13"AR13G $ 34.55
14"AR14G $ 37.05
15"AR15G $ 37.94
16"AR16G $ 42.37
17"AR17G $ 43.70
18"AR18G $ 48.15
20"AR20G $ 56.18
22"AR22G $ 60.47
24"AR24G $ 67.75
26"AR26G $ 87.72
28"AR28G $104.98
30"AR30G $104.98
32"AR32G $106.09
34"AR34G $109.53
36"AR36G $122.98
38"AR38G $124.28
40"AR40G $160.40
42"AR42G $164.90
44"AR44G $173.60
46"AR46G $181.50
48"AR48G $189.50
Larger Sizes availble, please call.

TO ORDER CALL 877-904-4022
