THE BLASTGATE COMPANY

HD End Plates

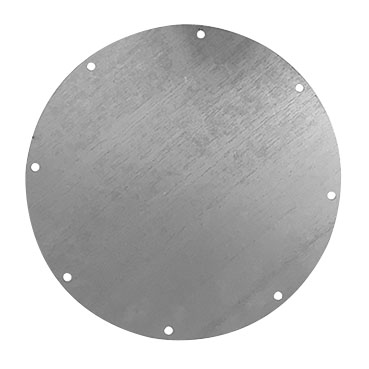

Our round end plates are pre drilled to mate with our angle flange ring bolt pattern. For end run cleanouts or to allow for future expansion. Our HD Heavy Duty duct system is designed for removal of large or heavy materials or abraisive media.

HD END PLATES

HD Elbow

Click on image for larger view

  • Galvanized 18 ga, 16 ga, 14 ga & 12 ga steel
  • Flanged end plates are flat plates with angle flange hole pattern
  • Specify diameter and gauge when ordering
HD End Plates

Click on image for larger view

HDEP Part Number Explanation
Part
No.
DiameterGauge
Plate
HDEPAA-GA

HD End Plates .pdf Spec Sheet
HD END PLATES
DIA.GAPart No.Price
8"12HDEP08-12 $ 20.70
8"14HDEP08-14 $ 17.30
8"18HDEP08-18 $ 14.01
10"12HDEP10-12 $ 24.60
10"14HDEP10-14 $ 22.80
10"18HDEP10-18 $ 18.47
12"12HDEP12-12 $ 32.10
12"14HDEP12-14 $ 29.80
12"18HDEP12-18 $ 24.24
14"12HDEP14-12 $ 39.90
14"14HDEP14-14 $ 37.00
14"18HDEP14-18 $ 29.97
16"12HDEP16-12 $ 54.40
16"14HDEP16-14 $ 50.50
16"18HDEP16-18 $ 40.91
18"12HDEP18-12 $ 57.50
18"14HDEP18-14 $ 53.40
18"18HDEP18-18 $ 43.25
20"12HDEP20-12 $ 60.40
20"14HDEP20-14 $ 56.10
20"18HDEP20-18 $ 45.44
22"12HDEP22-12 $ 67.20
22"14HDEP22-14 $ 62.30
22"18HDEP22-18 $ 50.46
24"12HDEP24-12 $ 72.20
24"14HDEP24-14 $ 66.90
24"18HDEP24-18 $ 54.19
26"12HDEP26-12 $100.50
26"14HDEP26-14 $ 93.10
26"16HDEP26-16 $ 83.79
28"12HDEP28-12 $110.70
28"14HDEP28-14 $102.60
28"16HDEP28-16 $ 92.34
30"12HDEP30-12 $121.20
30"14HDEP30-14 $112.30
30"16HDEP30-16 $101.07
32"12HDEP32-12 $127.30
32"14HDEP32-14 $117.90
32"16HDEP32-16 $106.11
34"12HDEP34-12 $137.50
34"14HDEP34-14 $127.50
34"16HDEP34-16 $114.75
36"12HDEP36-12 $141.60
36"14HDEP36-14 $131.30
36"18HDEP36-18 $118.17
38"12HDEP38-12 $143.70
38"14HDEP38-14 $133.20
38"16HDEP38-16 $123.88
40"12HDEP40-12 $154.00
40"14HDEP40-14 $142.70
40"16HDEP40-16 $128.43
42"12HDEP42-12 $158.40
42"14HDEP42-14 $146.80
42"16HDEP42-16 $132.12
44"12HDEP44-12 $166.50
44"16HDEP44-16 $139.05
44"44HDEP44-44 $154.50
46"12HDEP46-12 $174.30
46"14HDEP46-14 $161.40
46"16HDEP46-16 $145.26
48"12HDEP48-12 $182.00
48"14HDEP48-14 $168.70
48"16HDEP48-16 $151.83
Other sizes and gauges are available.
Please call for availability and pricing.

TO ORDER CALL 877-904-4022
