HD In-Cut Branches

Heavy duty welded In-Cut Saddle Tap Branches allow for expansion into existing ductwork. Designed for removal of large or heavy materials or abraisive media. Larger sizes and custom configurations are available.

HD IN-CUT BRANCHES

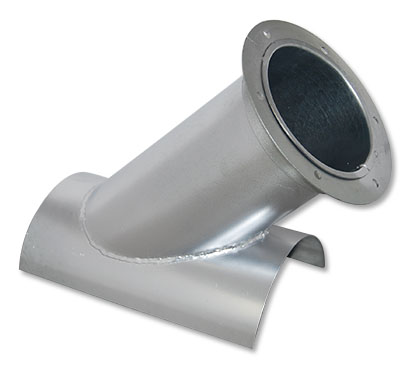

HD In-Cut Branch

Click on image for larger view

  • Galvanized 18 ga, 16 ga, 14 ga & 12 ga steel
  • In-cut saddle used to tap into existing lines
  • Vanstone ends with rotational angle flange is standard
  • 45 Degree tap standard.
  • Continuously seam welded
  • All branches priced by Tap diameter B
  • Please specify tap and pipe diameters when ordering
HD Double Branch

Click on image for larger view

HDIC Part Number Explanation
Part
No.
DiameterGauge
TapPipe
HDICBBPD-GA

HD In-Cut Branches .pdf Spec Sheet
DIA
A
HD IN-CUT BRANCHES
GAPart No.Price
8"12HDIC08-PD-12 $144.10
8"14HDIC08-PD-14 $116.40
8"18HDIC08-PD-18 $ 94.28
10"12HDIC10-PD-12 $156.20
10"14HDIC10-PD-14 $132.40
10"18HDIC10-PD-18 $107.24
12"12HDIC12-PD-12 $173.50
12"14HDIC12-PD-14 $147.80
12"18HDIC12-PD-18 $119.72
14"12HDIC14-PD-12 $196.60
14"14HDIC14-PD-14 $167.50
14"18HDIC14-PD-18 $135.68
16"12HDIC16-PD-12 $233.10
16"14HDIC16-PD-14 $200.30
16"18HDIC16-PD-18 $162.24
18"12HDIC18-PD-12 $258.20
18"14HDIC18-PD-14 $221.90
18"18HDIC18-PD-18 $179.74
20"12HDIC20-PD-12 $391.80
20"14HDIC20-PD-14 $333.90
20"18HDIC20-PD-18 $270.46
22"12HDIC22-PD-12 $525.50
22"14HDIC22-PD-14 $445.50
22"18HDIC22-PD-18 $360.86
24"12HDIC24-PD-12 $598.50
24"14HDIC24-PD-14 $506.80
24"18HDIC24-PD-18 $410.51
26"12HDIC26-PD-12 $661.00
26"14HDIC26-PD-14 $547.20
26"16HDIC26-PD-16 $492.48
28"12HDIC28-PD-12 $723.00
28"14HDIC28-PD-14 $598.70
28"16HDIC28-PD-16 $538.83
30"12HDIC30-PD-12 $801.40
30"14HDIC30-PD-14 $663.70
30"16HDIC30-PD-16 $597.33
32"12HDIC32-PD-12 $880.70
32"14HDIC32-PD-14 $729.60
32"16HDIC32-PD-16 $656.64
34"12HDIC34-PD-12 $1072.60
34"14HDIC34-PD-14 $889.30
34"16HDIC34-PD-16 $800.37
36"12HDIC36-PD-12 $1184.40
36"14HDIC36-PD-14 $982.10
36"16HDIC36-PD-16 $883.89
38"12HDIC38-PD-12 $1248.20
38"14HDIC38-PD-14 $1034.80
38"16HDIC38-PD-16 $931.32
40"12HDIC40-PD-12 $1313.90
40"14HDIC40-PD-14 $1089.30
40"16HDIC40-PD-16 $980.37
42"12HDIC42-PD-12 $1326.80
42"14HDIC42-PD-14 $1122.40
42"16HDIC42-PD-16 $1010.16
44"12HDIC44-PD-12 $1389.90
44"14HDIC44-PD-14 $1175.90
44"16HDIC44-PD-16 $1058.31
46"12HDIC46-PD-12 $1452.50
46"14HDIC46-PD-14 $1228.70
46"16HDIC46-PD-16 $1105.83
48"12HDIC48-PD-12 $1515.90
48"14HDIC48-PD-14 $1282.30
48"16HDIC48-PD-16 $1154.07
Other size and gauge combinations are available.
Please call for availability and pricing.

TO ORDER CALL 877-904-4022
