HD Lateral Branches

Heavy duty welded lateral branches with flanged ends designed for removal of large or heavy materials or abraisive media. Larger sizes and custom configurations are available.

HD 45° LATERAL WYE BRANCHES

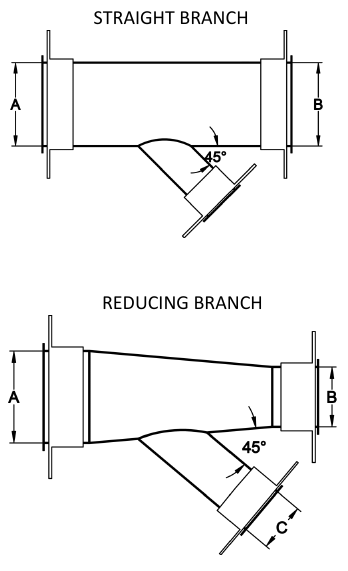

HD Branch

Click on image for larger view

  • Galvanized 18 ga, 16 ga, 14 ga & 12 ga steel
  • Vanstone ends with rotational angle flange is standard
  • 45 Degree tap standard. 30 Degree is available
  • Continuously seam welded
  • All branches price by largest end A
  • Please specify A, B and C tap diameters when ordering

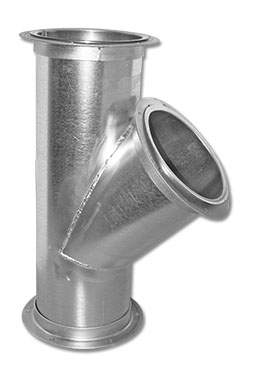

HD Branch

Click on image for larger view

HDB Part Number Explanation
Part
No.
DiameterGauge
ABC
HDBAABBCC-GA

Dimension AA must be larger than dimension CC.

HD Branches .pdf Spec Sheet
DIA
A
HD BRANCHES
GAPart No.Price
8"12HDB08-BB-CC-12 $307.60
8"14HDB08-BB-CC-14 $248.70
8"18HDB08-BB-CC-18 $201.45
10"12HDB10-BB-CC-12 $329.20
10"14HDB10-BB-CC-14 $280.70
10"18HDB10-BB-CC-18 $227.45
12"12HDB12-BB-CC-12 $380.20
12"14HDB12-BB-CC-14 $326.30
12"18HDB12-BB-CC-18 $264.30
14"12HDB14-BB-CC-12 $445.50
14"14HDB14-BB-CC-14 $382.20
14"18HDB14-BB-CC-18 $309.58
16"12HDB16-BB-CC-12 $545.20
16"14HDB16-BB-CC-14 $472.40
16"18HDB16-BB-CC-18 $382.84
18"12HDB18-BB-CC-12 $593.60
18"14HDB18-BB-CC-14 $514.50
18"18HDB18-BB-CC-18 $416.75
20"12HDB20-BB-CC-12 $703.90
20"14HDB20-BB-CC-14 $608.60
20"18HDB20-BB-CC-18 $492.97
22"12HDB22-BB-CC-12 $860.00
22"14HDB22-BB-CC-14 $740.10
22"18HDB22-BB-CC-18 $599.48
24"12HDB24-BB-CC-12 $971.50
24"14HDB24-BB-CC-14 $833.60
24"18HDB24-BB-CC-18 $675.22
26"12HDB26-BB-CC-12 $987.60
26"14HDB26-BB-CC-14 $853.80
26"16HDB26-BB-CC-16 $768.42
28"12HDB28-BB-CC-12 $1248.00
28"14HDB28-BB-CC-14 $1073.10
28"16HDB28-BB-CC-16 $965.79
30"12HDB30-BB-CC-12 $1399.10
30"14HDB30-BB-CC-14 $1201.30
30"16HDB30-BB-CC-16 $1081.17
32"12HDB32-BB-CC-12 $1560.90
32"14HDB32-BB-CC-14 $1337.90
32"16HDB32-BB-CC-16 $1204.11
34"12HDB34-BB-CC-12 $1732.30
34"14HDB34-BB-CC-14 $1483.20
34"16HDB34-BB-CC-16 $1334.88
36"12HDB36-BB-CC-12 $1903.75
36"14HDB36-BB-CC-14 $1628.40
36"16HDB36-BB-CC-16 $1465.56
38"12HDB38-BB-CC-12 $2095.70
38"14HDB38-BB-CC-14 $1792.60
38"16HDB38-BB-CC-16 $1613.34
40"12HDB40-BB-CC-12 $2254.00
40"14HDB40-BB-CC-14 $1926.50
40"16HDB40-BB-CC-16 $1733.85
42"12HDB42-BB-CC-12 $2346.00
42"14HDB42-BB-CC-14 $2005.50
42"16HDB42-BB-CC-16 $1804.95
44"12HDB44-BB-CC-12 $2457.50
44"14HDB44-BB-CC-14 $2100.80
44"16HDB44-BB-CC-16 $1890.72
46"12HDB46-BB-CC-12 $2567.10
46"14HDB46-BB-CC-14 $2194.20
46"16HDB46-BB-CC-16 $1974.78
48"12HDB48-BB-CC-12 $2679.40
48"14HDB48-BB-CC-14 $2290.20
48"16HDB48-BB-CC-16 $2061.18
Other size and gauge combinations are available.
Please call for availability and pricing.

TO ORDER CALL 877-904-4022
