HD Wye Branches

Heavy duty welded true wye branches with flanged ends designed for removal of large or heavy materials or abraisive media. Larger sizes and custom configurations are available.

HD TRUE WYE BRANCHES

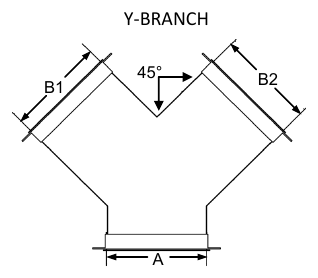

HD Wye Branch

Click on image for larger view

  • Galvanized 18 ga, 16 ga, 14 ga & 12 ga steel
  • Vanstone ends with rotational angle flange is standard
  • Continuously seam welded
  • All branches priced by largest end A
  • Please specify A, B1 and B2 tap diameters when ordering

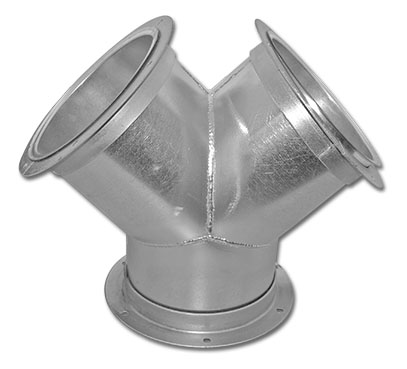

HD Wye Branch

Click on image for larger view

HDY Part Number Explanation
Part
No.
DiameterGauge
AB1B2
HDYAAB1B2-GA

Dimension B1 must be equal to B2.

HD Wye Branches .pdf Spec Sheet
DIA
A
HD WYE BRANCHES
GAPart No.Price
8"12HDY08-B1-B2-12 $402.40
8"14HDY08-B1-B2-14 $323.00
8"18HDY08-B1-B2-18 $261.63
10"12HDY10-B1-B2-12 $412.80
10"14HDY10-B1-B2-14 $350.50
10"18HDY10-B1-B2-18 $283.91
12"12HDY12-B1-B2-12 $487.30
12"14HDY12-B1-B2-14 $415.40
12"18HDY12-B1-B2-18 $336.47
14"12HDY14-B1-B2-12 $583.80
14"14HDY14-B1-B2-14 $497.60
14"18HDY14-B1-B2-18 $403.06
16"12HDY16-B1-B2-12 $684.90
16"14HDY16-B1-B2-14 $588.70
16"18HDY16-B1-B2-18 $476.85
18"12HDY18-B1-B2-12 $758.60
18"14HDY18-B1-B2-14 $652.00
18"18HDY18-B1-B2-18 $528.12
20"12HDY20-B1-B2-12 $893.60
20"14HDY20-B1-B2-14 $766.60
20"18HDY20-B1-B2-18 $620.95
22"12HDY22-B1-B2-12 $1015.50
22"14HDY22-B1-B2-14 $869.70
22"18HDY22-B1-B2-18 $704.46
24"12HDY24-B1-B2-12 $1150.80
24"14HDY24-B1-B2-14 $983.00
24"18HDY24-B1-B2-18 $796.23
26"12HDY26-B1-B2-12 $1231.00
26"14HDY26-B1-B2-14 $1056.50
26"16HDY26-B1-B2-16 $951.03
28"12HDY28-B1-B2-12 $1409.20
28"14HDY28-B1-B2-14 $1207.50
28"16HDY28-B1-B2-16 $1086.75
30"12HDY30-B1-B2-12 $1547.00
30"14HDY30-B1-B2-14 $1324.70
30"16HDY30-B1-B2-16 $1192.23
32"12HDY32-B1-B2-12 $1699.20
32"14HDY32-B1-B2-14 $1453.20
32"16HDY32-B1-B2-16 $1307.88
34"12HDY34-B1-B2-12 $1869.70
34"14HDY34-B1-B2-14 $1597.70
34"16HDY34-B1-B2-16 $1437.93
36"12HDY36-B1-B2-12 $2043.70
36"14HDY36-B1-B2-14 $1745.00
36"16HDY36-B1-B2-16 $1570.50
38"12HDY38-B1-B2-12 $2236.70
38"14HDY38-B1-B2-14 $1910.00
38"16HDY38-B1-B2-16 $1719.00
40"12HDY40-B1-B2-12 $2422.60
40"14HDY40-B1-B2-14 $2067.00
40"16HDY40-B1-B2-16 $1860.30
42"12HDY42-B1-B2-12 $2545.70
42"14HDY42-B1-B2-14 $2172.00
42"16HDY42-B1-B2-16 $1954.80
44"12HDY44-B1-B2-12 $2666.90
44"14HDY44-B1-B2-14 $2275.20
44"16HDY44-B1-B2-16 $2047.68
46"12HDY46-B1-B2-12 $2785.80
46"14HDY46-B1-B2-14 $2376.50
46"16HDY46-B1-B2-16 $2138.85
48"12HDY48-B1-B2-12 $2907.80
48"14HDY48-B1-B2-14 $2480.50
48"16HDY48-B1-B2-16 $2232.45
Other size and gauge combinations are available.
Please call for availability and pricing.

TO ORDER CALL 877-904-4022
